OSTOQ08 Series

Catalog

TERM BLOCK HDR 8POS VERT 5MM

Part	Contact Material	Contact Tail Length	Contact Tail Length	Mounting Type	Insulation Height [z]	Insulation Height [z]	Housing Material	Contact Mating Finish	Number of Levels	Type	Termination Style	Number of Positions	Positions Per Level	Pitch	Pitch	Voltage - UL	Header Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Features	Insulation Height	Insulation Height

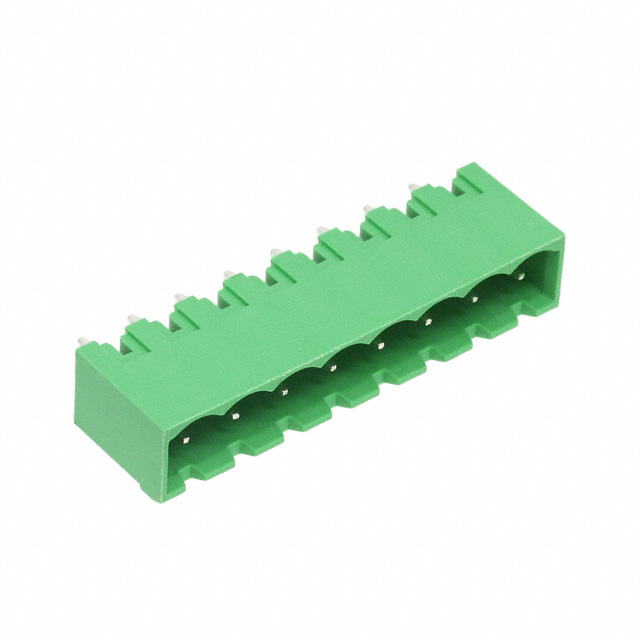

On Shore Technology Inc. OSTOQ087150	Brass	0.157 in	4 mm	Solder Through Hole	4 mm	0.157 in	Thermoplastic	Tin	1	Header Male Pins Shrouded (4 Side)	Solder	8	8	0.197 in	5 mm	300 V	Vertical	-30 ░C	105 ░C
On Shore Technology Inc. OSTOQ083551	Brass	0.138 in	3.5 mm	Solder Through Hole	3.5 mm	0.138 "	Thermoplastic	Tin	1	Header Male Pins Shrouded (4 Side)	Solder	8	8	0.15 in	3.81 mm	300 V	90° Right Angle	-30 ░C	105 ░C	UL94 V-0	Mating Flange
On Shore Technology Inc. OSTOQ085400	Brass	0.157 in	4 mm	Solder Through Hole			Thermoplastic	Tin	1	Header Male Pins Shrouded (4 Side)	Solder	8	8	0.2 in	5.08 mm	300 V	Vertical	-30 ░C	105 ░C			0.472 "	12 mm
On Shore Technology Inc. OSTOQ08B150		0.138 in	3.5 mm	Solder Through Hole	3.5 mm	0.138 "	Thermoplastic	Tin	1	Header Male Pins Shrouded (4 Side)	Solder	8	8	0.098 in	2.5 mm	125 V	Vertical	-40 C	115 °C
On Shore Technology Inc. OSTOQ08A151	Brass	0.157 in	4 mm	Solder Through Hole	4 mm	0.157 in	Thermoplastic	Tin	1	Header Male Pins Shrouded (4 Side)	Solder	8	8	0.295 in	7.5 mm	300 V	90° Right Angle	-30 ░C	105 ░C
On Shore Technology Inc. OSTOQ085350	Brass	0.157 in	4 mm	Solder Through Hole	4 mm	0.157 in	Thermoplastic	Tin	1	Header Male Pins Shrouded (2 Side)	Solder	8	8	0.2 in	5.08 mm	300 V	Vertical	-30 ░C	105 ░C

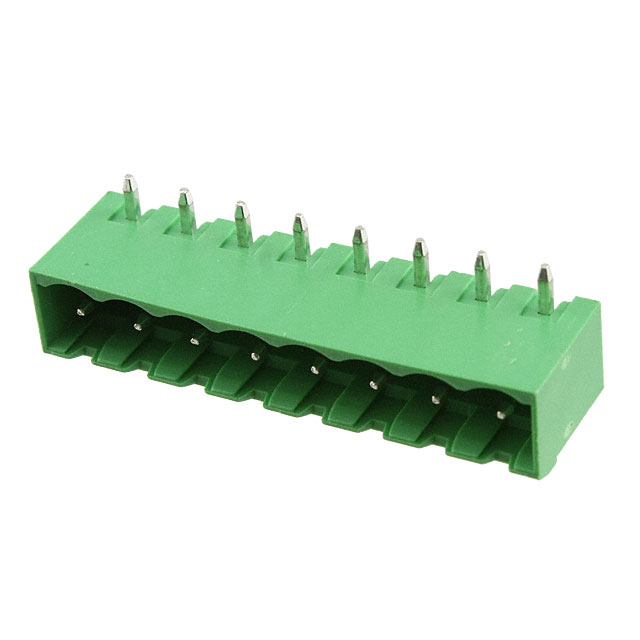

On Shore Technology Inc. OSTOQ085451		0.157 in	4 mm	Solder Through Hole	4 mm	0.157 in	Thermoplastic	Tin	1	Header Male Pins Shrouded (4 Side)	Solder	8	8	0.2 in	5.08 mm	300 V	90° Right Angle	-40 C	115 °C
On Shore Technology Inc. OSTOQ08B151	Brass	0.15 in	3.81 mm	Through Hole			Thermoplastic	Tin	1	Header Male Pins Shrouded (4 Side)	Solder	8	8	0.098 in	2.5 mm	125 V	90° Right Angle	-30 ░C	105 ░C				0.15 in 3.81 mm
On Shore Technology Inc. OSTOQ080050	Brass	0.157 in	4 mm	Solder Through Hole	4 mm	0.157 in	Thermoplastic	Tin	1	Header Male Pins Shrouded (2 Side)	Solder	8	8	0.3 in	7.62 mm	300 V	Vertical	-30 ░C	105 ░C
On Shore Technology Inc. OSTOQ080151	Brass	0.157 in	4 mm	Solder Through Hole	4 mm	0.157 in	Thermoplastic	Tin	1	Header Male Pins Shrouded (4 Side)	Solder	8	8	0.3 in	7.62 mm	300 V	90° Right Angle	-30 ░C	105 ░C
