CRFS-2202 Series
Manufacturer: Nidec Components Corporation
Beta
⌘K

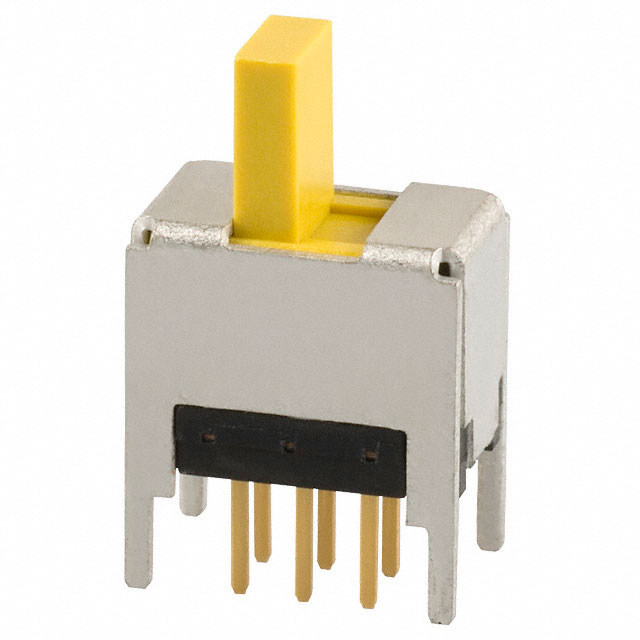

SLIDE SWITCH, DPDT, 0.1A, 12VDC, THT ROHS COMPLIANT: YES
| Part | Electrical Life | Switch Travel | Actuator Material | Operating Force | Actuator Length [x] | Termination Style | Contact Timing | Contact Material | Switch Function | Actuator Type | Contact Finish | Mounting Type | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Circuit | Voltage Rating - DC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nidec Components Corporation | 10000 Cycles | 2 mm | Polyamide (PA) Nylon | 255 gf | 5 mm | PC Pin | Non-Shorting (BBM) | Copper Alloy | On-On | Standard | Gold | Through Hole | 100 mA | 85 °C | -40 C | DPDT | 12 V |
