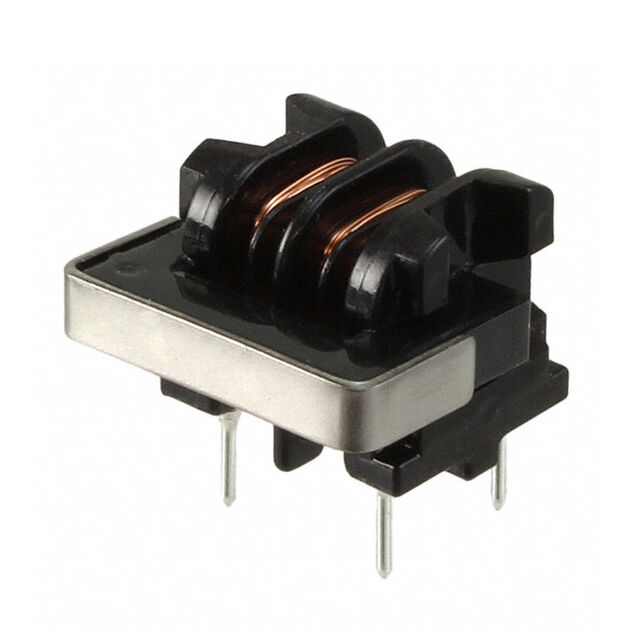

SU9HF Series

Manufacturer: KEMET

Catalog

CMC 6MH 300MA 2LN TH

Part	Operating Temperature [Max]	Operating Temperature [Min]	Number of Lines	DC Resistance (DCR) (Max) [Max]	Current Rating (Max) [Max]	Filter Type	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Voltage Rating - AC	Inductance @ Frequency	Mounting Type	Height (Max) [z]	Height (Max) [z]	DC Resistance (DCR) (Max)
KEMET SU9HF-03060	120 °C	-25 °C	2	2 Ohm	300 mA	Power Line	Vertical 4 PC Pin	15.5 mm	17 mm	0.61 in	0.669 in	250 V	1 kHz 6 mH	Through Hole	12 mm	0.472 in
KEMET SU9HF-05030	120 °C	-25 °C	2		500 mA	Power Line	Vertical 4 PC Pin	15.5 mm	17 mm	0.61 in	0.669 in	250 V	1 kHz 3 mH	Through Hole	12 mm	0.472 in	1 Ohm

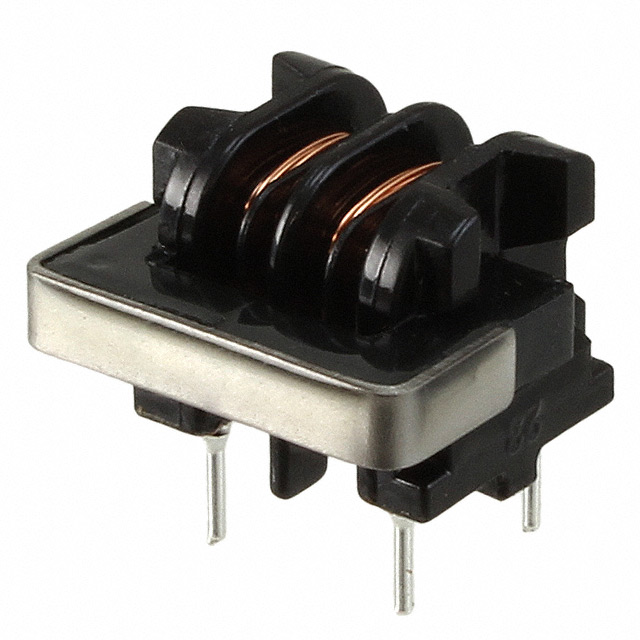

KEMET SU9HF-05050	120 °C	-25 °C	2	1.3 Ohm	500 mA	Power Line	Vertical 4 PC Pin	15.5 mm	17 mm	0.61 in	0.669 in	250 V	5 mH	Through Hole	12 mm	0.472 in
