R14132 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

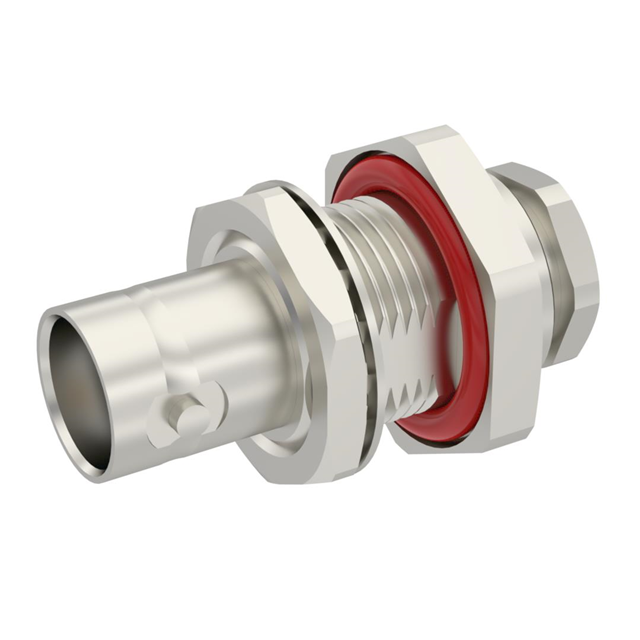

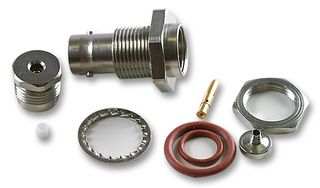

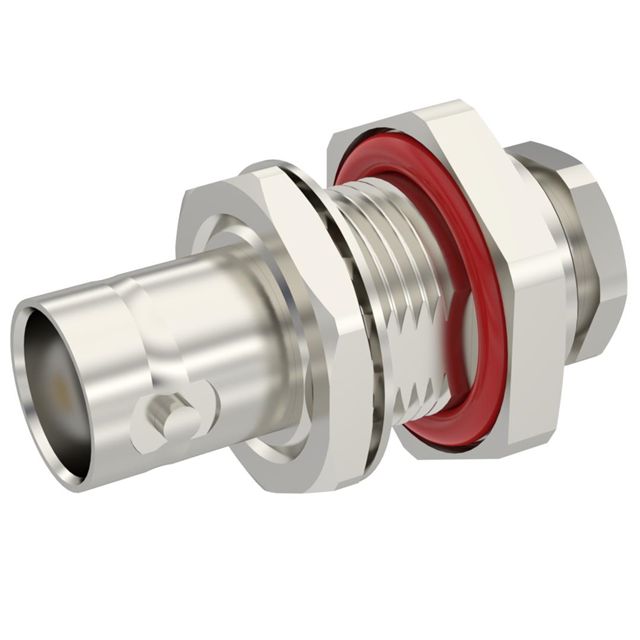

BNC / STRAIGHT BULKHEAD JACK PAN
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Dielectric Material | Body Finish | Body Material | Mating Cycles | Center Contact Plating | Connector Type | Cable Group | Fastening Type | Housing Color | Shield Termination | Contact Termination | Connector Style | Impedance | Mounting Type | Mounting Feature | Frequency - Max [Max] | Center Contact Material | Number of Ports |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | -65 ░C | 165 °C | 500 V | Polytetrafluoroethylene (PTFE) | Nickel | Brass | 500 | Gold | Female Socket Jack | 179 316 RD-316 RG-174 | Bayonet Lock | Silver | Clamp | Solder | BNC | 50 Ohms | Panel Mount | Bulkhead - Front Side Nut | 4 GHz | Beryllium Copper | 1 |
 Radiall USA, Inc. | -65 ░C | 165 °C | 500 V | Polytetrafluoroethylene (PTFE) | Nickel | Brass | 500 | Gold | Female Socket Jack | 141 142 223 400 RG-58 | Bayonet Lock | Silver | Clamp | Solder | BNC | 50 Ohms | Panel Mount | Bulkhead - Front Side Nut | 4 GHz | Beryllium Copper | 1 |
