9992 Series
Manufacturer: Belden Inc.
Beta
⌘K

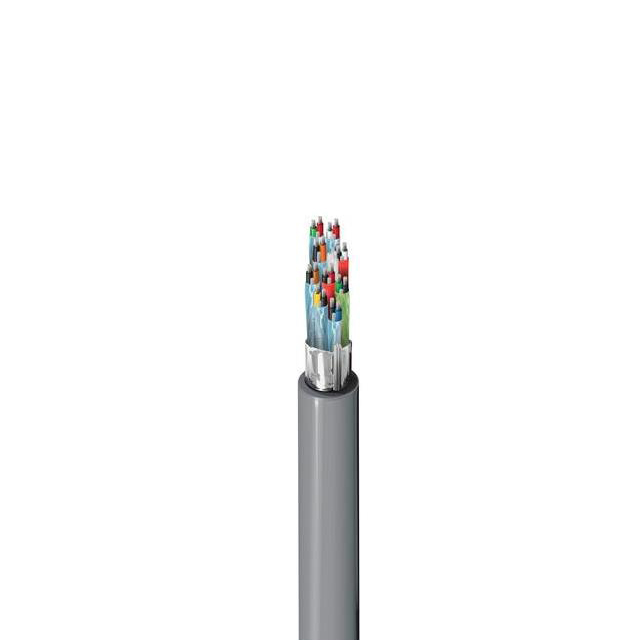

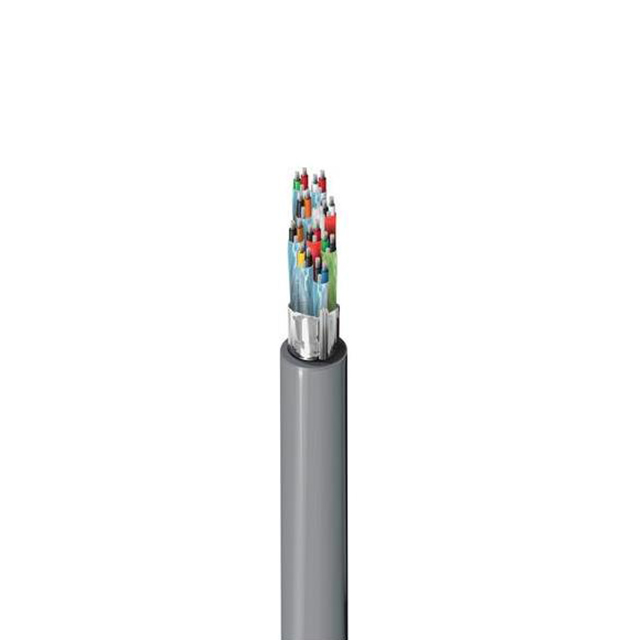

MULTI-PAIR 18COND 24AWG
| Part | Shield Material | Shield Coverage | Conductor Insulation | Conductor Material | Length [x] | Length [x] | Features | Number of Conductors | Usage | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Wire Gauge | Shield Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Operating Temperature [Max] | Operating Temperature [Min] | Cable Type | Jacket Color | Jacket (Insulation) Material | Ratings | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | Polyethylene (PE) | Copper Tinned | 100 ft | 30.5 m | Drain Wire | 18 | Audio Control Instrumentation | 7 | 32 AWG | 0.035 in | 0.889 mm | 24 AWG | Foil | 0.383 " | 9.73 mm | 80 °C | -20 ░C | Multi-Pair | Chrome | Poly-Vinyl Chloride (PVC) | UL Style 2919 | ||
 Belden Inc. | Aluminum | 100 % | Polyethylene (PE) | Copper Tinned | Drain Wire | 18 | Audio Control Instrumentation | 7 | 32 AWG | 0.035 in | 0.889 mm | 24 AWG | Foil | 0.383 " | 9.73 mm | 80 °C | -20 ░C | Multi-Pair | Chrome | Poly-Vinyl Chloride (PVC) | UL Style 2919 | 152.4 m | 500 ft |
