L115F21 Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
RELAY GEN PURPOSE SPDT 50A 24V
| Part | Coil Resistance | Mounting Type | Coil Voltage | Seal Rating | Contact Material | Contact Rating (Current) | Load - Max Switching | Operating Temperature [Min] | Operating Temperature [Max] | Coil Insulation | Coil Current | Operate Time | Switching Voltage [Max] | Must Operate Voltage | Relay Type | Contact Form | Termination Style | Coil Type | Release Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

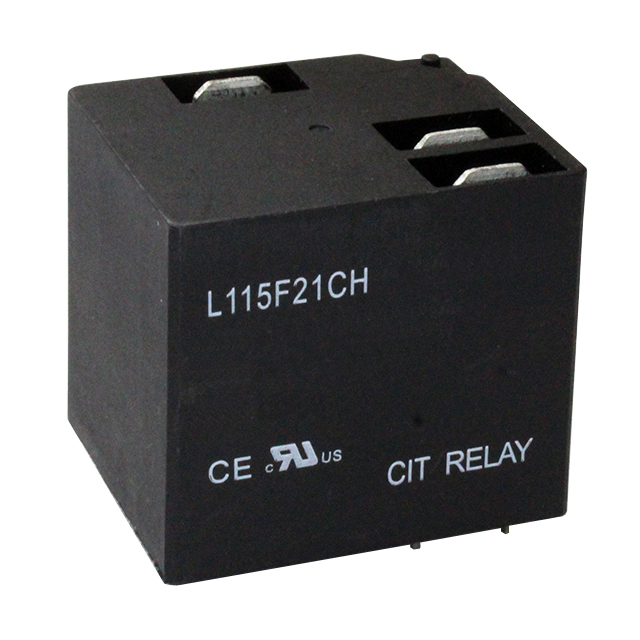

 CIT Relay and Switch | 384 Ohms | Through Hole | 24 VDC | Sealed - Fully | Silver Tin Oxide Indium Oxide (AgSnOInO) | 50 A | 5500 W 13850 VA | -55 C | 125 °C | Class F | 62.5 mA | 15 ms | 110 VDC 277 VAC | 19.2 VDC | General Purpose | SPDT (1 Form C) | PC Pin Quick Connect - 0.250" (6.3mm) | Latching Single Coil | 15 ms |

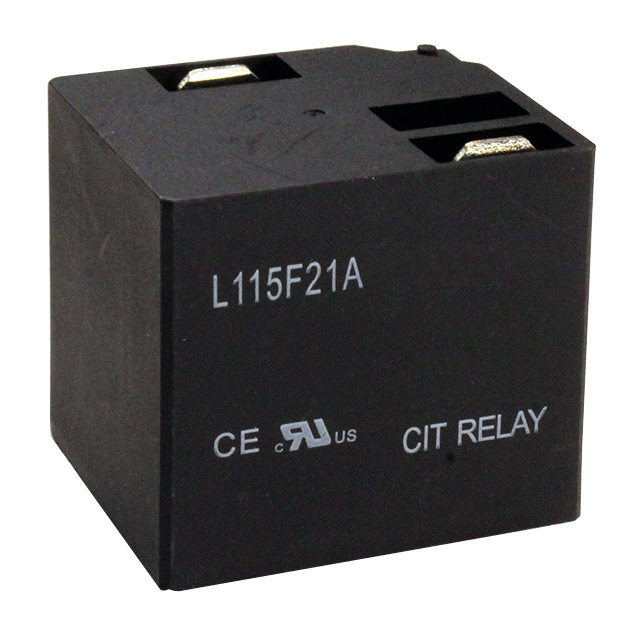

 CIT Relay and Switch | 96 Ohms | Through Hole | 12 VDC | Sealed - Fully | Silver Tin Oxide Indium Oxide (AgSnOInO) | 50 A | 5500 W 13850 VA | -55 C | 125 °C | Class F | 125 mA | 15 ms | 110 VDC 277 VAC | 9.6 VDC | General Purpose | SPST-NO (1 Form A) | PC Pin Quick Connect - 0.250" (6.3mm) | Latching Single Coil | 15 ms |
