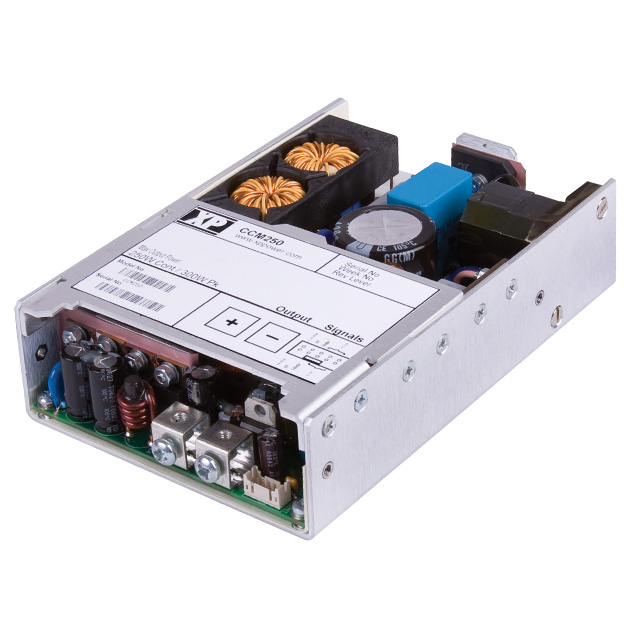

CCM250 Series
Manufacturer: XP Power
Beta
⌘K
AC/DC CONVERTER 48V 250W
| Part | Minimum Load Required | Approval Agency | Features | Voltage - Input [Min] | Voltage - Input [Max] | Current - Output 1 | Efficiency | Mounting Type | Type | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Isolation | Standard Number | Number of Outputs | Applications | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Power (Watts) | Voltage - Output 1 | Voltage - Output 1 [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 XP Power | CB TUV UL | Adjustable Output PFC Remote On/Off Standby Output Universal Input | 80 VAC | 275 VAC | 5.2 A | 95 % | Chassis Mount | Open Frame | 70 °C | -20 °C | 4000 V | 62368-1 | 1 | ITE (Commercial) Medical | 6 " | 4 " | 152.4 mm | 101.6 mm | 1.54 in | 39.1 mm | 250 W | 48 V | ||
XP Power | CB TUV UL | Adjustable Output PFC Remote On/Off Standby Output Universal Input | 80 VAC | 275 VAC | 10.4 A | 95 % | Chassis Mount | Open Frame | 70 °C | -20 °C | 4000 V | 62368-1 | 1 | ITE (Commercial) Medical | 6 " | 4 " | 152.4 mm | 101.6 mm | 1.54 in | 39.1 mm | 250 W | 24 V | ||
XP Power | CB TUV UL | Adjustable Output PFC Remote On/Off Standby Output Universal Input | 80 VAC | 275 VAC | 6.9 A | 95 % | Chassis Mount | Open Frame | 70 °C | -20 °C | 4000 V | 62368-1 | 1 | ITE (Commercial) Medical | 6 " | 4 " | 152.4 mm | 101.6 mm | 1.54 in | 39.1 mm | 248 W | 36 V | ||
XP Power | CB TUV UL | Adjustable Output PFC Remote On/Off Standby Output Universal Input | 80 VAC | 275 VAC | 8.9 A | 95 % | Chassis Mount | Open Frame | 70 °C | -20 °C | 4000 V | 62368-1 | 1 | ITE (Commercial) Medical | 6 " | 4 " | 152.4 mm | 101.6 mm | 1.54 in | 39.1 mm | 249 W | 28 V |
