ANT-450 Series

Catalog

ANTENNAS ANTENNA 1/4 WAVE WHIP 450MHZ RG174

Part	Frequency Group [Max]	Frequency Group	Frequency Group [Min]	Return Loss	Applications	VSWR	Number of Bands	Antenna Type	RF Family/Standard	Features	Frequency Range [Max]	Frequency Range [Min]	Mounting Type	Gain	Power - Max [Max]	Height (Max) [z]	Frequency (Center/Band)	Termination	Termination	Height (Max) [z]	Height (Max) [Max] [z]	Height (Max) [Max] [z]

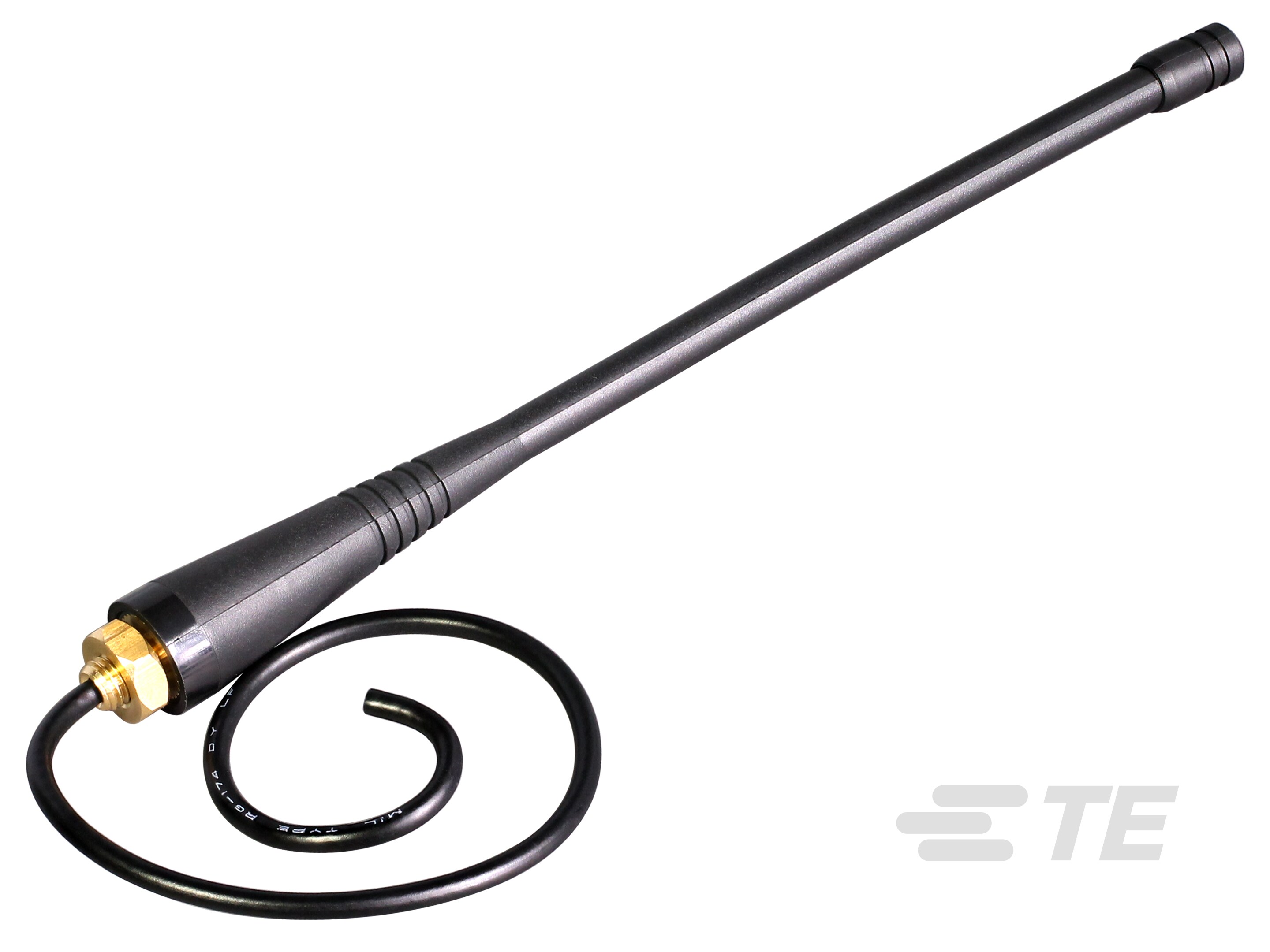

TE Connectivity AMP Connectors ANT-450-PW-QW	1 GHz	UHF	300 MHz	17.7 dB	5G Cellular LTE mMTC NB-IoT NR	1.3	1	Whip Straight	Cellular	Cable - 216mm	470 MHz	450 MHz	Solder	3.4 dBi	10 W	6.57 in 167 mm	458 MHz

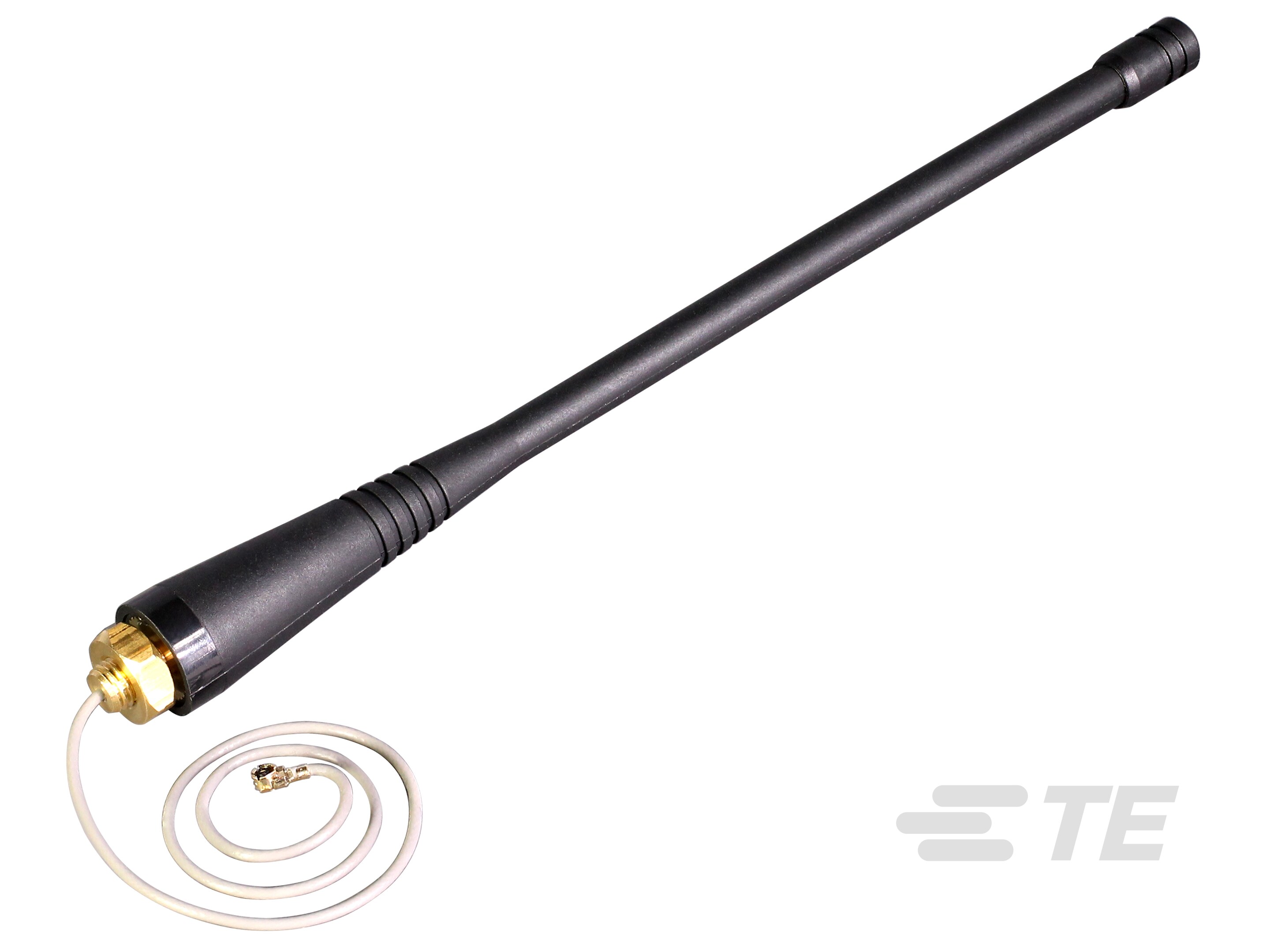

TE Connectivity AMP Connectors ANT-450-PW-QW-UFL	1 GHz	UHF	300 MHz	17.7 dB	5G Cellular LTE mMTC NB-IoT NR	1.3	1	Whip Straight	Cellular	Cable - 216mm	470 MHz	450 MHz	Solder	3.4 dBi	10 W	6.57 in 167 mm	458 MHz	IPEX MHF1	I-PEX MHF1 U.FL (UMCC)

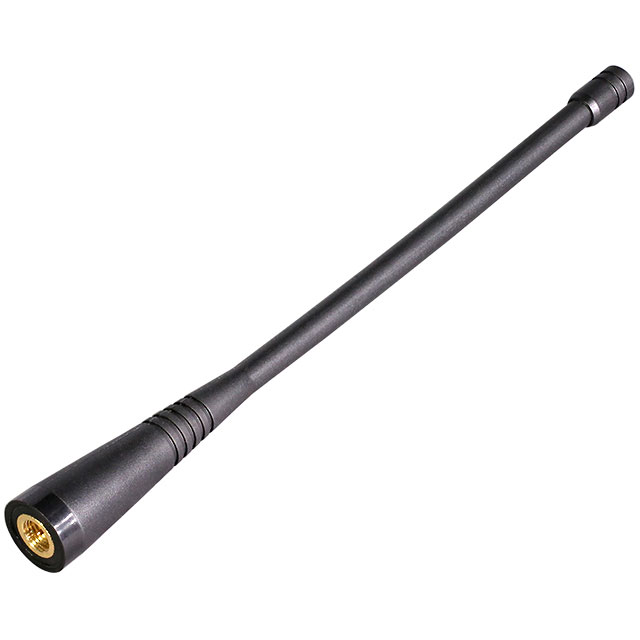

TE Connectivity AMP Connectors ANT-450-CW-QW-SMA	1 GHz	UHF	300 MHz	17.7 dB	5G Cellular LTE mMTC NB-IoT NR	1.3	1	Whip Straight	Cellular		470 MHz	450 MHz	Connector Mount	3.4 dBi	10 W	6.57 in 167 mm	458 MHz

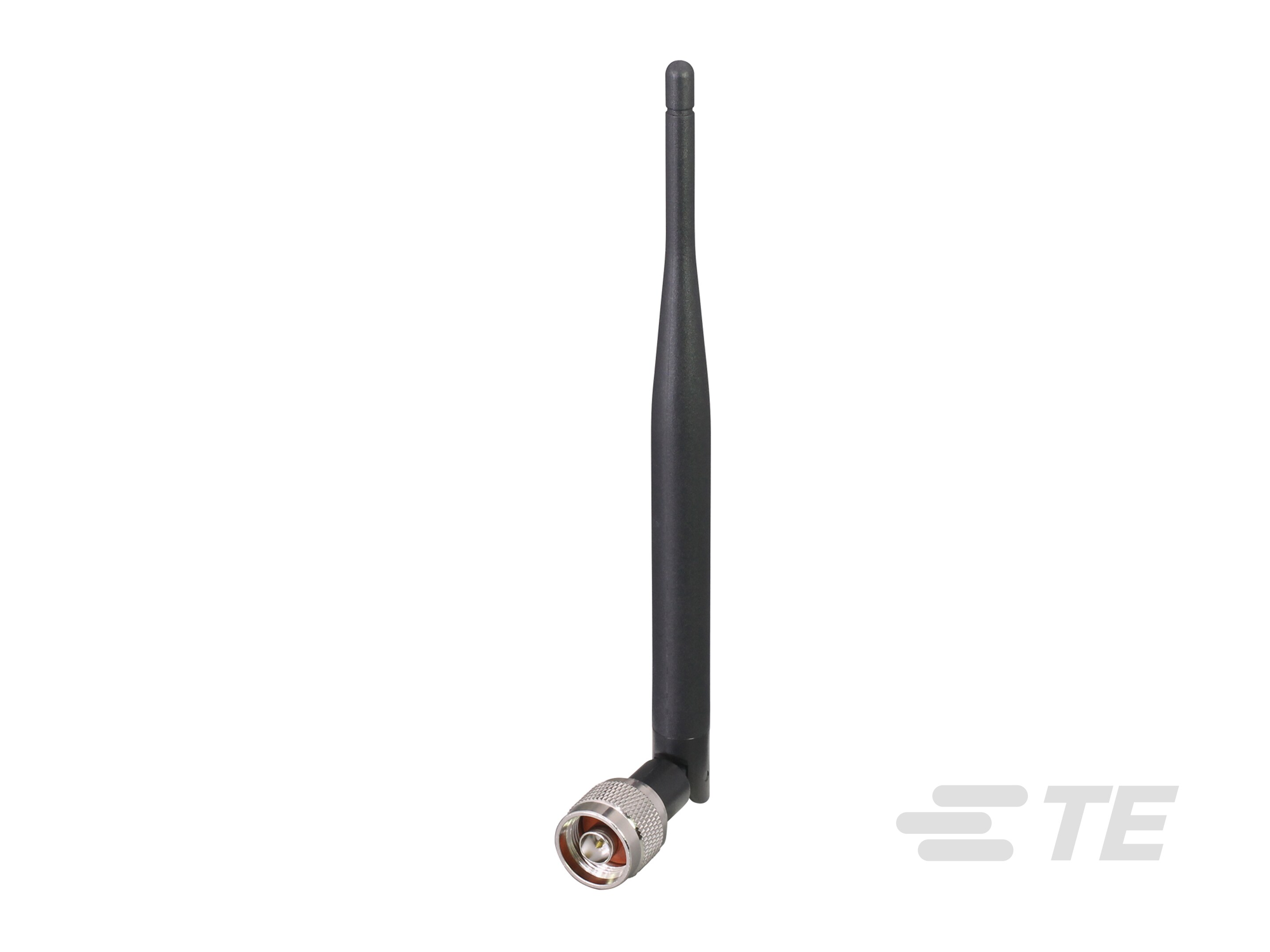

TE Connectivity AMP Connectors ANT-450-HSW-NP	1 GHz	UHF	300 MHz		LTE	1.2 1.6	2	Right Angle Whip	Cellular		427 MHz 467.5 MHz	410 MHz 450 MHz	Connector Mount	2.3 dBi 3.1 dBi	25 W	205.49 mm	418.5 MHz 458.75 MHz		N Type Male	8.09 in
TE Connectivity AMP Connectors ANT-450-HSW-TNC	1 GHz	UHF	300 MHz		LTE	1.2 1.6	2	Right Angle Whip	Cellular		427 MHz 467.5 MHz	410 MHz 450 MHz	Connector Mount	2.3 dBi 3.1 dBi	25 W		418.5 MHz 458.75 MHz		TNC Male		7.94 in	201.68 mm
