ECQ-UAAF105 Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K

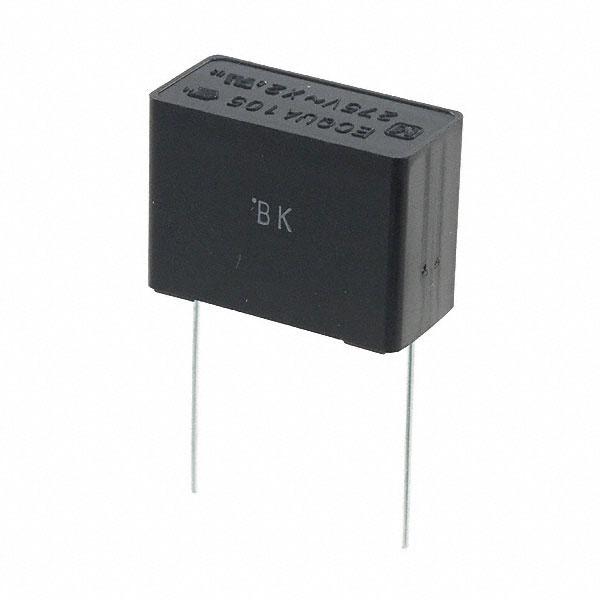

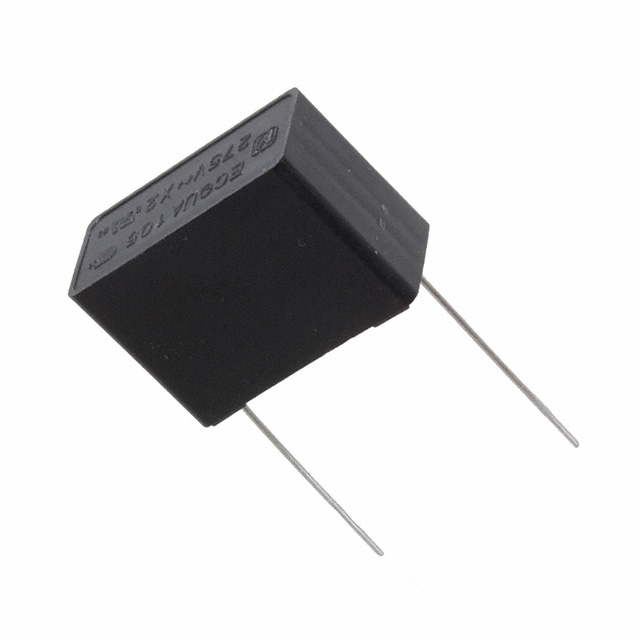

CAP FILM 1UF 10% 275VAC RADIAL
| Part | Package / Case | Lead Spacing | Lead Spacing | Dielectric Material | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Applications | Tolerance | Termination | Voltage Rating - AC | Capacitance | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Ratings | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | Radial | 0.886 in | 22.5 mm | Polypropylene (PP) Metallized | 0.768 in | 19.5 mm | -40 C | 110 °C | EMI RFI Suppression | 10 % | PC Pins | 275 V | 1 µF | 0.472 " | 12 mm | 26 mm | 1.024 in | X2 | Through Hole |
 Panasonic Electronic Components | Radial | 0.886 in | 22.5 mm | Polypropylene (PP) Metallized | 0.768 in | 19.5 mm | -40 C | 110 °C | Automotive EMI RFI Suppression | 10 % | PC Pins | 275 V | 1 µF | 0.472 " | 12 mm | 26 mm | 1.024 in | AEC-Q200 X2 | Through Hole |
