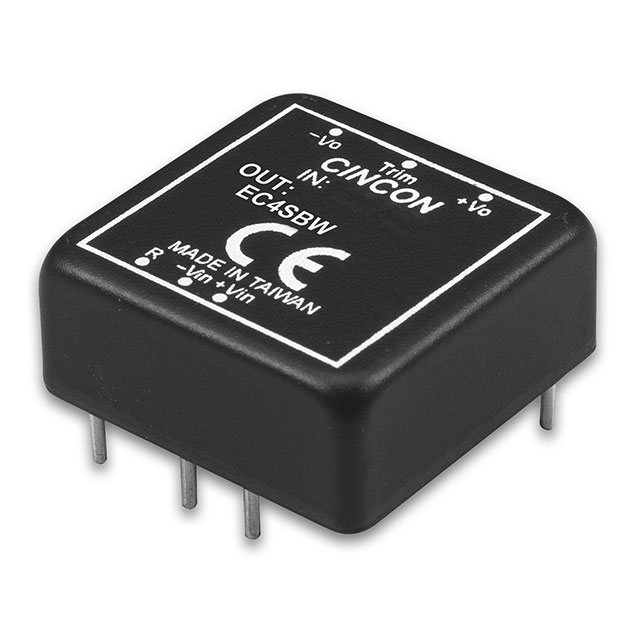

EC4SBW Series
Manufacturer: Cincon Electronics Co. LTD
Beta
⌘K
CONVERTER: DC/DC; 20W; UIN: 18÷75VDC; UOUT: 15VDC; 15V; UOUT2: -15VDC
| Part | Voltage - Input (Min) [Min] | Number of Outputs | Efficiency | Power (Watts) | Approval Agency | Mounting Type | Features | Voltage - Output 1 | Operating Temperature [Min] | Operating Temperature [Max] | Current - Output (Max) [Max] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Type | Voltage - Isolation | Applications | Voltage - Input (Max) [Max] | Voltage - Output 2 | Package / Case | Standard Number | Control Features | Current - Output (Max) | Current - Output (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cincon Electronics Co. LTD | 18 V | 2 | 88.5 % | 20 W | CE | Through Hole | OCP OVP Remote On/Off SCP UVLO | 15 V | -40 °C | 85 °C | 660 mA | 1 " | 1 in | 25.4 mm | 10.2 mm | 0.4 " | 25.4 mm | Isolated Module | 1.5 kV | ITE (Commercial) | 75 V | -15 V | 6-DIP Module | 62368-1 | Active Low Enable | ||
Cincon Electronics Co. LTD | 9 V 18 V | 1 | 89 % | 20 W | CE | Through Hole | OCP OVP Remote On/Off SCP UVLO | 15 V | -40 °C | 85 °C | 1.33 A | 1 " | 1 in | 25.4 mm | 10.2 mm | 0.4 " | 25.4 mm | Isolated Module | 1.5 kV | ITE (Commercial) | 36 V 75 V | 6-DIP Module | 62368-1 | Active High Enable | |||
Cincon Electronics Co. LTD | 9 V 18 V | 1 | 88.5 % | 15 W | CE | Through Hole | OCP OVP Remote On/Off SCP UVLO | 3.3 V | -40 °C | 85 °C | 4.5 A | 1 " | 1 in | 25.4 mm | 10.2 mm | 0.4 " | 25.4 mm | Isolated Module | 1.5 kV | ITE (Commercial) | 36 V 75 V | 6-DIP Module | 62368-1 | Active High Enable | |||
Cincon Electronics Co. LTD | 18 V | 1 | 88.5 % | 15 W | CE | Through Hole | OCP OVP Remote On/Off SCP UVLO | 3.3 V | -40 °C | 85 °C | 4.5 A | 1 " | 1 in | 25.4 mm | 10.2 mm | 0.4 " | 25.4 mm | Isolated Module | 1.5 kV | ITE (Commercial) | 75 V | 6-DIP Module | 62368-1 | Active High Enable | |||
Cincon Electronics Co. LTD | 18 V | 2 | 88.5 % | 20 W | CE | Through Hole | OCP OVP Remote On/Off SCP UVLO | 12 V | -40 °C | 85 °C | 1 " | 1 in | 25.4 mm | 10.2 mm | 0.4 " | 25.4 mm | Isolated Module | 1.5 kV | ITE (Commercial) | 75 V | -12 V | 6-DIP Module | 62368-1 | Active Low Enable | 830 mA | 830 mA | |
Cincon Electronics Co. LTD | 9 V 18 V | 1 | 89 % | 20 W | CE | Through Hole | OCP OVP Remote On/Off SCP UVLO | 12 V | -40 °C | 85 °C | 1.67 A | 1 " | 1 in | 25.4 mm | 10.2 mm | 0.4 " | 25.4 mm | Isolated Module | 1.5 kV | ITE (Commercial) | 36 V 75 V | 6-DIP Module | 62368-1 | Active Low Enable | |||
Cincon Electronics Co. LTD | 9 V | 1 | 89 % | 20 W | CE | Through Hole | OCP OVP Remote On/Off SCP UVLO | 12 V | -40 °C | 85 °C | 1.67 A | 1 " | 1 in | 25.4 mm | 10.2 mm | 0.4 " | 25.4 mm | Isolated Module | 1.5 kV | ITE (Commercial) | 36 V | 6-DIP Module | 62368-1 | Active High Enable | |||
Cincon Electronics Co. LTD | 18 V | 1 | 89 % | 20 W | CE | Through Hole | OCP OVP Remote On/Off SCP UVLO | 15 V | -40 °C | 85 °C | 1.33 A | 1 " | 1 in | 25.4 mm | 10.2 mm | 0.4 " | 25.4 mm | Isolated Module | 1.5 kV | ITE (Commercial) | 75 V | 6-DIP Module | 62368-1 | Active Low Enable | |||
Cincon Electronics Co. LTD | 18 V | 2 | 88.5 % | 20 W | CE | Through Hole | OCP OVP Remote On/Off SCP UVLO | 12 V | -40 °C | 85 °C | 1 " | 1 in | 25.4 mm | 10.2 mm | 0.4 " | 25.4 mm | Isolated Module | 1.5 kV | ITE (Commercial) | 75 V | -12 V | 6-DIP Module | 62368-1 | Active High Enable | 830 mA | 830 mA | |
Cincon Electronics Co. LTD | 18 V | 2 | 88.5 % | 20 W | CE | Through Hole | OCP OVP Remote On/Off SCP UVLO | 15 V | -40 °C | 85 °C | 660 mA | 1 " | 1 in | 25.4 mm | 10.2 mm | 0.4 " | 25.4 mm | Isolated Module | 1.5 kV | ITE (Commercial) | 75 V | -15 V | 6-DIP Module | 62368-1 | Active High Enable |
