2158100 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

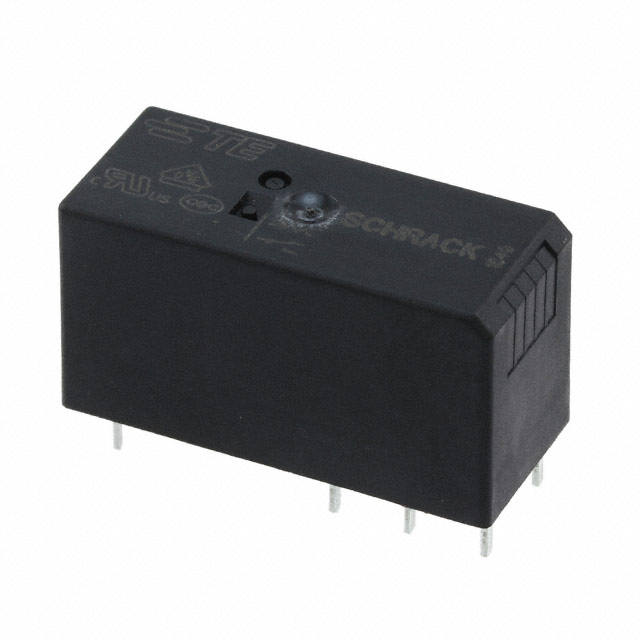

RELAY GEN PURPOSE SPDT 12A 12V
| Part | Coil Resistance | Approval Agency | Operate Time | Load - Max Switching | Switching Voltage [Max] | Contact Rating (Current) | Mounting Type | Termination Style | Contact Form | Operating Temperature [Max] | Operating Temperature [Min] | Coil Voltage | Release Time | Contact Material | Relay Type | Must Operate Voltage | Coil Type | Coil Insulation | Must Release Voltage | Seal Rating | Coil Current |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 272 Ohms | CQC cURus VDE | 8 ms | 6400 VA | 400 VAC | 12 A | Through Hole | PC Pin | SPDT (1 Form C) | 70 °C | -40 C | 12 VDC | 6 ms | Silver Nickel (AgNi) | General Purpose | 8.4 VDC | Non Latching | Class F | 1.2 VDC | ||
 TE Connectivity AMP Connectors | 272 Ohms | CQC cURus VDE | 8 ms | 6400 VA | 400 VAC | 16 A | Through Hole | PC Pin | SPDT (1 Form C) | 70 °C | -40 C | 12 VDC | 6 ms | Silver Nickel (AgNi) | General Purpose | 8.4 VDC | Non Latching | Class F | 1.2 VDC | Sealed - Flux Protection | |
 TE Connectivity AMP Connectors | 47 Ohms | CQC cURus VDE | 8 ms | 6400 VA | 400 VAC | 16 A | Through Hole | PC Pin | SPDT (1 Form C) | 70 °C | -40 C | 5 VDC | 6 ms | Silver Nickel (AgNi) | General Purpose | 3.5 VDC | Non Latching | Class F | 0.5 VDC | Sealed - Flux Protection | 106 mA |
TE Connectivity AMP Connectors | 1.09 kOhms | CQC cURus VDE | 8 ms | 6400 VA | 400 VAC | 16 A | Through Hole | PC Pin | SPDT (1 Form C) | 70 °C | -40 C | 24 VDC | 6 ms | Silver Nickel (AgNi) | General Purpose | 16.8 VDC | Non Latching | Class F | 2.4 VDC | Sealed - Flux Protection | 22.1 mA |
 TE Connectivity AMP Connectors | |||||||||||||||||||||
TE Connectivity AMP Connectors | 1.09 kOhms | CQC cURus VDE | 8 ms | 6400 VA | 400 VAC | 16 A | Through Hole | PC Pin | SPST-NO (1 Form A) | 70 °C | -40 C | 24 VDC | 6 ms | Silver Nickel (AgNi) | General Purpose | 16.8 VDC | Non Latching | Class F | 2.4 VDC | Sealed - Flux Protection | 22.1 mA |
TE Connectivity AMP Connectors | 272 Ohms | CQC cURus VDE | 8 ms | 6400 VA | 400 VAC | 16 A | Through Hole | PC Pin | SPST-NO (1 Form A) | 70 °C | -40 C | 12 VDC | 6 ms | Silver Nickel (AgNi) | General Purpose | 8.4 VDC | Non Latching | Class F | 1.2 VDC | Sealed - Flux Protection |
