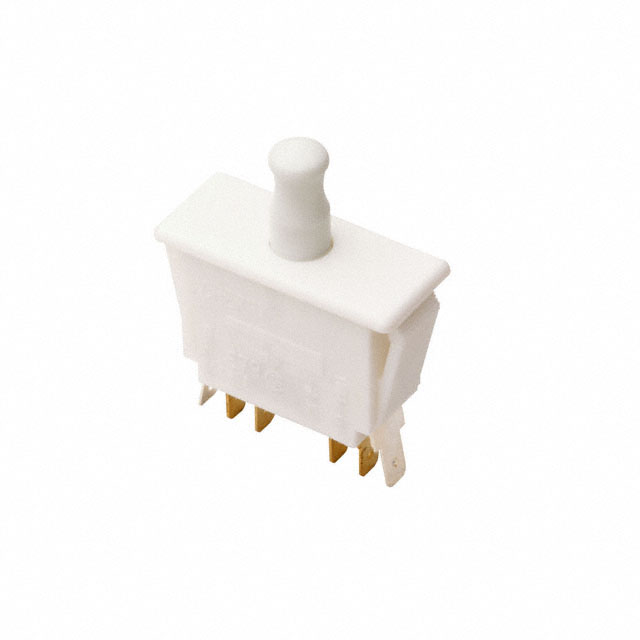

E78 Series
Manufacturer: ZF Electronics
Beta
⌘K
SWITCH PUSH BUTTON N.O./N.C. DPDT BUTTON 0.1A 125VAC MOMENTARY PANEL MOUNT QUICK CONNECT
| Part | Overtravel [custom] | Overtravel [custom] | Actuator Type | Operating Force | Current Rating (Amps) | Switch Function | Pretravel | Pretravel | Operating Temperature [Max] | Operating Temperature [Min] | Circuit | Differential Travel | Differential Travel | Operating Position | Operating Position | Voltage Rating - AC | Mounting Type | Electrical Life | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ZF Electronics | 9.5 mm | 0.375 " | Round (Pin Plunger) | 0.68 kgf | 100 mA | On-Mom | 0.125 in | 3.2 mm | 85 °C | -40 C | DPDT | 0.075 in | 1.9 mm | 0.72 in | 18.3 mm | 125 V | Panel Mount Snap-In | 6000 Cycles | Quick Connect |
