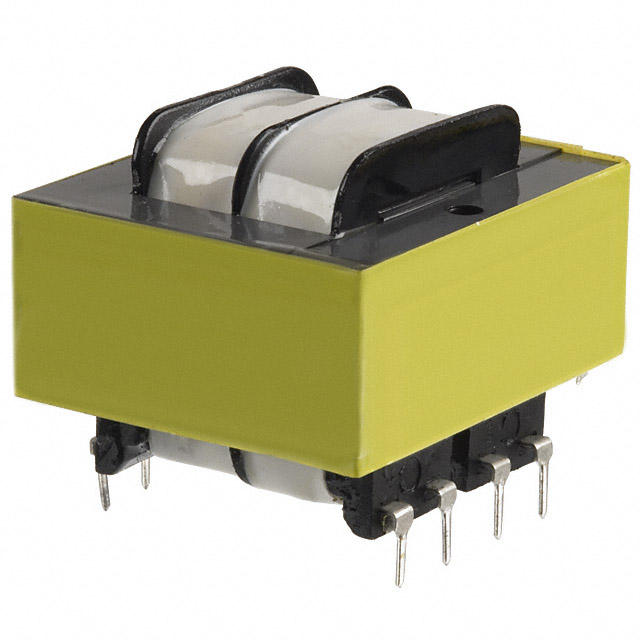

3FD Series
Manufacturer: Tamura
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
POWER TRANSFORMERS THROUGH HOLE 12VA
| Part | Primary Winding(s) | Voltage - Primary | Mounting Type | Size / Dimension Width | Size / Dimension Length | Voltage - Secondary (Full Load) (Parallel) | Voltage - Secondary (Full Load) (Series) | Type | Center Tap | Termination Style | Current - Output (Max) Series | Current - Output (Max) Parallel | Height - Seated (Max) | Secondary Winding(s) | Power - Max | Voltage - Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Tamura | Dual | 115V 230V | Through Hole | 41.52 mm | 48.5 mm | 12 V | 24 V | Laminated Core | No | PC Pin | 500 mA | 1 A | 38 mm | Dual | 12 W | 2500 Vrms |
Tamura | Dual | 115V 230V | Through Hole | 41.52 mm | 48.5 mm | 8 V | 16 V | Laminated Core | No | PC Pin | 800 mA | 1.6 A | 38 mm | Dual | 12 W | 2500 Vrms |
