14L Series
Manufacturer: EDAC Inc.
Beta
⌘K
14L SERIES (.156"(3.96MM) CONTAC
| Part | Material Flammability Rating | Insulation Material | Fastening Type | Insulation Height [z] | Insulation Height | Number of Positions | Shrouding | Contact Material | Termination | Contact Type | Style | Contact Shape | Number of Positions Loaded | Insulation Color | Voltage Rating | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Mounting Type | Contact Length - Post [x] | Contact Length - Post [x] | Pitch - Mating | Pitch - Mating | Number of Rows | Contact Finish - Mating | Contact Finish Thickness - Mating | Overall Contact Length [x] | Overall Contact Length [x] | Insulation Height [z] | Contact Length - Mating [custom] | Contact Length - Mating [custom] | Note | Pitch | Pitch | Color | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

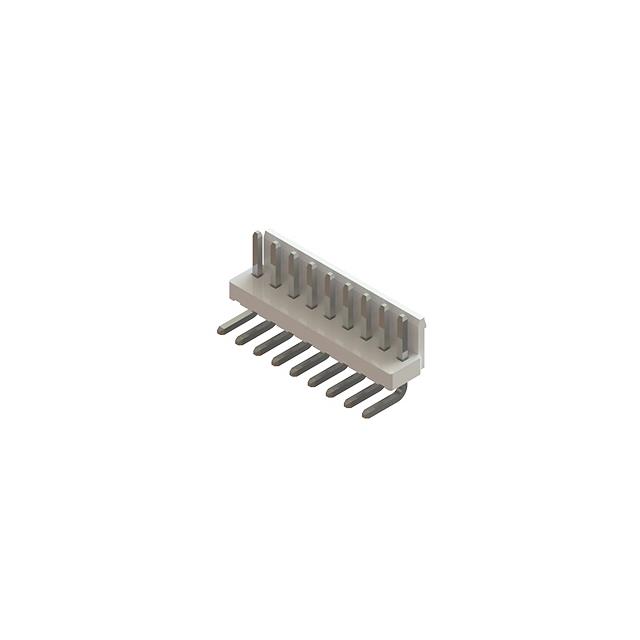

 EDAC Inc. | UL94 V-0 | Nylon 6/6 Polyamide (PA66) | Locking Ramp | 0.343 in | 8.71 mm | 9 | Shrouded - 1 Wall | Brass | Solder | Male Pin | Board to Cable/Wire | Square | All | Natural | 250 VAC | 7 A | -40 C | 105 ░C | Header | Right Angle Through Hole | 3.81 mm | 0.15 in | 3.96 mm | 0.156 in | 1 | ||||||||||||

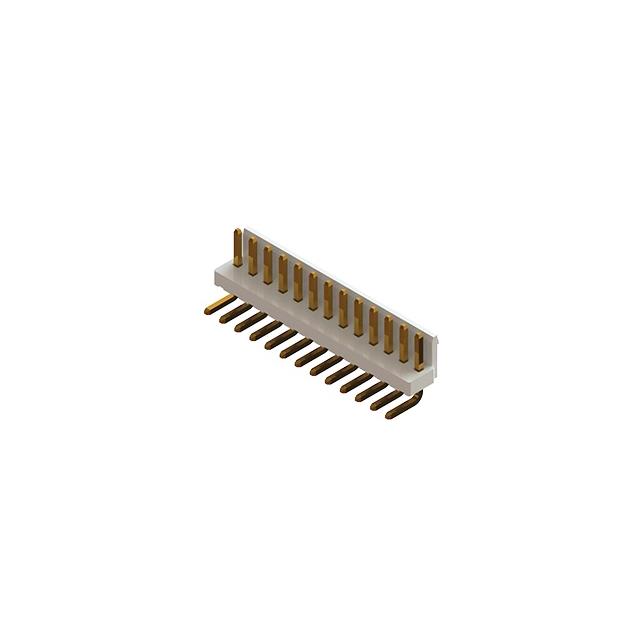

 EDAC Inc. | UL94 V-0 | Nylon 6/6 Polyamide (PA66) | Locking Ramp | 0.343 in | 8.71 mm | 13 | Shrouded - 1 Wall | Brass | Solder | Male Pin | Board to Cable/Wire | Square | All | Natural | 250 VAC | 7 A | -40 C | 105 ░C | Header | Right Angle Through Hole | 3.81 mm | 0.15 in | 3.96 mm | 0.156 in | 1 | Gold | Flash | ||||||||||

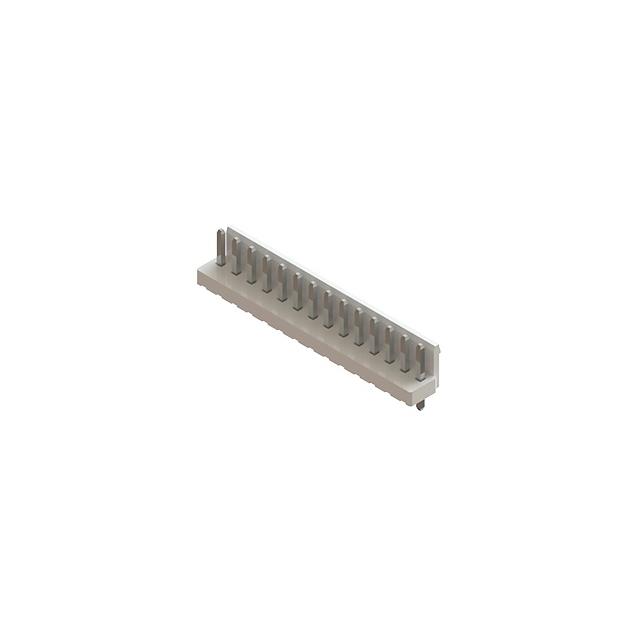

 EDAC Inc. | UL94 V-0 | Nylon 6/6 Polyamide (PA66) | Locking Ramp | 0.374 in | 14 | Shrouded - 1 Wall | Brass | Solder | Male Pin | Board to Cable/Wire | Square | All | Natural | 250 VAC | 7 A | -40 C | 105 ░C | Header | Through Hole | 3.81 mm | 0.15 in | 3.96 mm | 0.156 in | 1 | 14.6 mm | 0.575 in | 9.5 mm | 7.6 mm | 0.299 in | ||||||||
 EDAC Inc. | UL94 V-0 | Nylon 6/6 Polyamide (PA66) | Locking Ramp | 0.343 in | 8.71 mm | 10 | Shrouded - 1 Wall | Brass | Solder | Male Pin | Board to Cable/Wire | Square | All | Natural | 250 VAC | 7 A | -40 C | 105 ░C | Header | Right Angle Through Hole | 3.81 mm | 0.15 in | 3.96 mm | 0.156 in | 1 | ||||||||||||

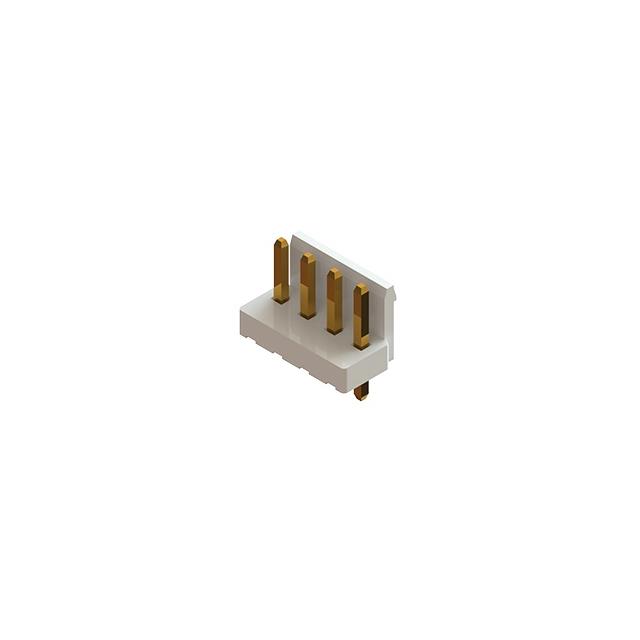

 EDAC Inc. | UL94 V-0 | Nylon 6/6 Polyamide (PA66) | Locking Ramp | 0.374 in | 4 | Shrouded - 1 Wall | Brass | Solder | Male Pin | Board to Cable/Wire | Square | All | Natural | 250 VAC | 7 A | -40 C | 105 ░C | Header | Through Hole | 3.81 mm | 0.15 in | 3.96 mm | 0.156 in | 1 | Gold | Flash | 14.6 mm | 0.575 in | 9.5 mm | 7.6 mm | 0.299 in | ||||||

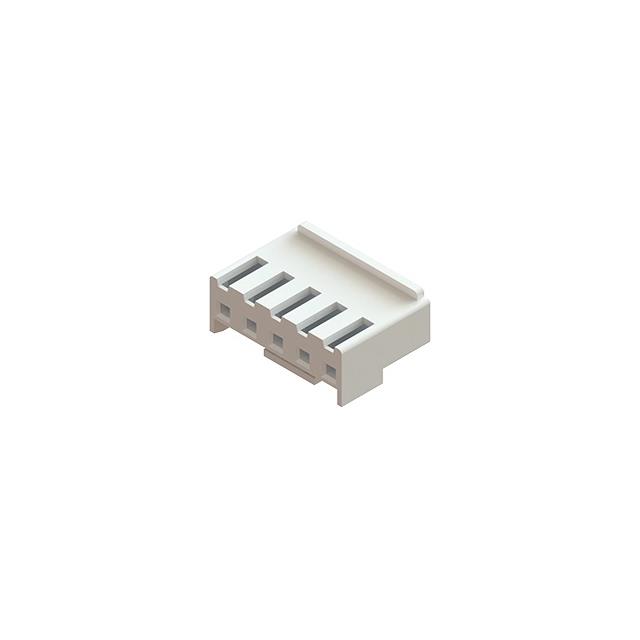

 EDAC Inc. | Nylon 6/6 Polyamide (PA66) | Latch Lock | 5 | Female Socket | -25 °C | 105 ░C | Receptacle | Free Hanging (In-Line) | 1 | Contacts Not Included | 3.96 mm | 0.156 in | Natural | Crimp |
