Maxi-Mox Series
Manufacturer: Ohmite
Beta
⌘K
THICK FILM RESISTORS - THROUGH HOLE 6W 50KV NI 50MEG 1%
| Part | Resistance | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [diameter] | Power (Watts) | Supplier Device Package | Features | Package / Case | Operating Temperature [Min] | Operating Temperature [Max] | Tolerance | Temperature Coefficient | Composition | Number of Terminations [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Ohmite | 50 MOhms | 130.56 mm | 5.14 " | 8.76 mm | 0.345 " | 6 W | Axial | High Voltage Non-Inductive | Axial | -55 C | 210 °C | 1 % | 25 ppm/°C | Thick Film | 2 |
 Ohmite | 15 MOhms | 54.36 mm | 2.14 " | 8.76 mm | 0.345 " | 3 W | Axial | High Voltage Non-Inductive | Axial | -55 C | 210 °C | 1 % | 25 ppm/°C | Thick Film | 2 |

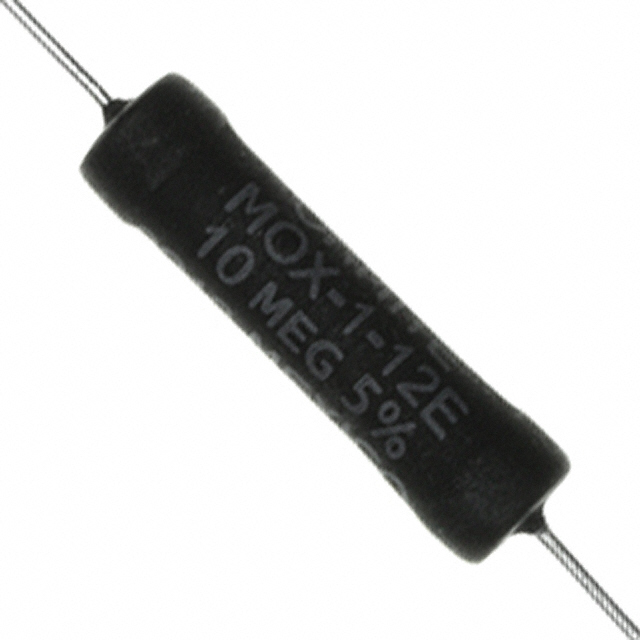

 Ohmite | 10 MOhms | 28.45 mm | 1.12 in | 7.87 mm | 0.31 " | 2.5 W | Axial | High Voltage | Axial | -55 C | 210 °C | 5 % | 25 ppm/°C | Thick Film | 2 |
 Ohmite | 100 MOhms | 28.45 mm | 1.12 in | 7.87 mm | 0.31 " | 2.5 W | Axial | High Voltage | Axial | -55 C | 210 °C | 5 % | 50 ppm/░C | Thick Film | 2 |
Ohmite | 1 GOhms | 53.85 mm | 2.12 in | 7.87 mm | 0.31 " | 5 W | Axial | High Voltage | Axial | -55 C | 210 °C | 5 % | 50 ppm/░C | Thick Film | 2 |
 Ohmite | 1 MOhms | 105.16 mm | 4.14 in | 8.76 mm | 0.345 " | 5 W | Axial | High Voltage Non-Inductive | Axial | -55 C | 210 °C | 1 % | 25 ppm/°C | Thick Film | 2 |
 Ohmite | 1 MOhms | 28.96 mm | 1.14 " | 8.76 mm | 0.345 " | 2 W | Axial | High Voltage Non-Inductive | Axial | -55 C | 210 °C | 1 % | 25 ppm/°C | Thick Film | 2 |
