T92HP Series

Catalog

RELAY GEN PURPOSE DPST 50A 24V

Part	Coil Resistance	Coil Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Must Operate Voltage	Contact Material	Load - Max Switching	Switching Voltage [Max]	Mounting Type	Coil Current	Coil Voltage	Operate Time	Coil Type	Contact Form	Release Time	Relay Type	Contact Rating (Current)	Must Release Voltage	Termination Style
TE Connectivity AMP Connectors T92HP7D1X-24	350 Ohms	Class F	-55 C	85 °C	CSA TUV UL UR VDE	18 VDC	Silver Cadmium Oxide (AgCdO)	30000 VA	600 VAC	Through Hole	68.6 mA	24 VDC	25 ms	Non Latching	DPST-NO (2 Form A)	25 ms	General Purpose	50 A	2.4 VDC
TE Connectivity AMP Connectors T92HP7D1X-12	86 Ohms	Class F	-55 C	85 °C	CSA TUV UL UR VDE	9 VDC	Silver Cadmium Oxide (AgCdO)	30000 VA	600 VAC	Through Hole	139.5 mA	12 VDC	25 ms	Non Latching	DPST-NO (2 Form A)	25 ms	General Purpose	50 A	1.2 VDC

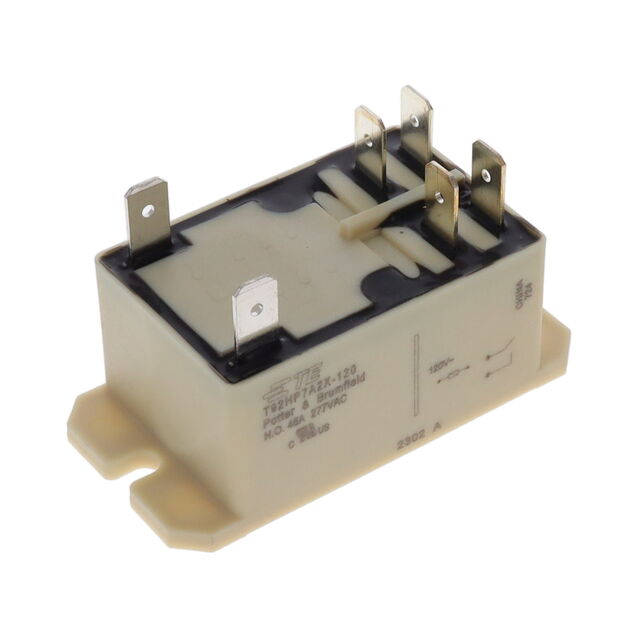

TE Connectivity AMP Connectors T92HP7A2X-120	950 Ohms	Class F	-55 C	85 °C		96 VAC	Silver Alloy Cadmium Free	27000 VA	600 VAC	Chassis Mount	130 mA	120 VAC	25 ms	Non Latching	DPST-NO (2 Form A)	25 ms	General Purpose	45 A	12 VAC	Quick Connect - 0.250" (6.3mm)
