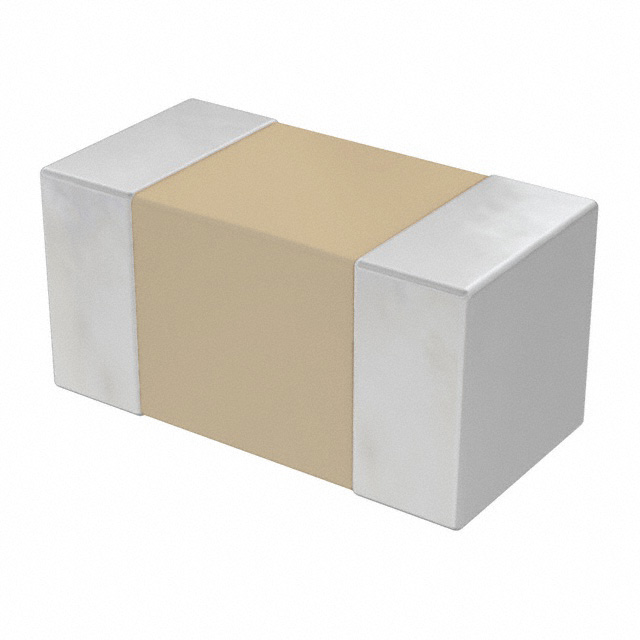

MLK0603 Series
Manufacturer: TDK Corporation
Beta
⌘K
RF INDUCTORS - SMD SUGGESTED ALTERNATE MLG0603S7N5JT000
| Part | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Mounting Type | Package / Case | Package / Case | DC Resistance (DCR) | Tolerance | Inductance Frequency - Test | Operating Temperature [Min] | Operating Temperature [Max] | Shielding | Current Rating (Amps) | Supplier Device Package | Supplier Device Package | Inductance | Q @ Freq | Material - Core | Frequency - Self Resonant | Type | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TDK Corporation | 0.012 in | 0.024 in | 0.3 mm | 0.6 mm | Surface Mount | 0603 Metric | 0201 | 700 mOhm | 5 % | 100 MHz | -55 C | 125 °C | Unshielded | 0.2 A | 0603 Metric | 0201 | 7.5 nH | 6 300 MHz | Non-Magnetic | 6 GHz | Multilayer | 0.013 " | 0.33 mm |
