80200 Series Series
Snap-acting Momentary Pushbutton Switches
Manufacturer: Littelfuse/Commercial Vehicle Products
Catalog
Snap-acting Momentary Pushbutton Switches
...
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Actuator Marking | Actuator Type | Electrical Life | Mounting Type | Termination Style | Current Rating (Amps) | Voltage Rating - AC | Switch Function | Features | Circuit | Type | Color - Actuator/Cap | Voltage Rating - DC | Panel Cutout Dimensions [diameter] | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Littelfuse/Commercial Vehicle Products | -30 ░C | 75 ░C | No Marking | Round Plunger | 60000 Cycles | Through Hole | PC Pin | 0.4 VA | 20 V | On-Mom | Tactile Feedback | SPDT | Standard | White | 20 V | |||
Littelfuse/Commercial Vehicle Products | -30 ░C | 65 °C | No Marking | Round Plunger | 60000 Cycles | Panel Mount Rear | PC Pin | 120 V | On-Mom | Tactile Feedback | SPDT | Standard | White | 28 V | 0.25 in | |||
 Littelfuse/Commercial Vehicle Products | -30 ░C | 75 ░C | No Marking | Round Plunger | 60000 Cycles | Through Hole Right Angle | PC Pin | 120 V | On-Mom | Tactile Feedback | SPDT | Standard | White | 28 V | ||||
Littelfuse/Commercial Vehicle Products | -30 ░C | 75 ░C | No Marking | Round Plunger | 60000 Cycles | Through Hole | PC Pin | 120 V | On-Mom | Tactile Feedback | DPDT | Standard | White | 28 V | ||||
Littelfuse/Commercial Vehicle Products | -30 ░C | 65 °C | No Marking | Button Square | 60000 Cycles | Panel Mount Snap-In | Quick Connect - 0.062" (1.5mm) | 120 V | On-Mom | Tactile Feedback | SPDT | Standard | Black | 28 V | 12.7 mm | 15.24 mm | ||
Littelfuse/Commercial Vehicle Products | -30 ░C | 75 ░C | No Marking | Round Plunger | 60000 Cycles | Panel Mount Rear | Wire Wrap | 120 V | On-Mom | Tactile Feedback | DPDT | Standard | White | 28 V | 0.25 in | |||
 Littelfuse/Commercial Vehicle Products | -30 ░C | 75 ░C | No Marking | Round Plunger | 60000 Cycles | Panel Mount Rear | PC Pin | 0.4 VA | 20 V | On-Mom | Tactile Feedback | DPDT | Standard | White | 20 V | 0.25 in | ||
 Littelfuse/Commercial Vehicle Products | -30 ░C | 75 ░C | No Marking | Round Plunger | 60000 Cycles | Panel Mount Rear Right Angle Vertical | PC Pin | 0.4 VA | 20 V | On-Mom | Tactile Feedback | SPDT | Standard | White | 20 V | 0.25 in | ||
Littelfuse/Commercial Vehicle Products | -30 ░C | 75 ░C | No Marking | Round Plunger | 60000 Cycles | Panel Mount Rear | Wire Wrap | 120 V | On-Mom | Tactile Feedback | SPDT | Standard | White | 28 V | 0.25 in | |||
 Littelfuse/Commercial Vehicle Products | -30 ░C | 75 ░C | No Marking | Round Plunger | 60000 Cycles | Panel Mount Rear | PC Pin | 0.4 VA | 20 V | On-Mom | Tactile Feedback | SPDT | Standard | White | 20 V | 0.25 in |
Key Features
• Epoxy terminal seal-compatible with bottom wash cleaning
• Wide variety of termination options
• Positive tactile feel
Description
AI

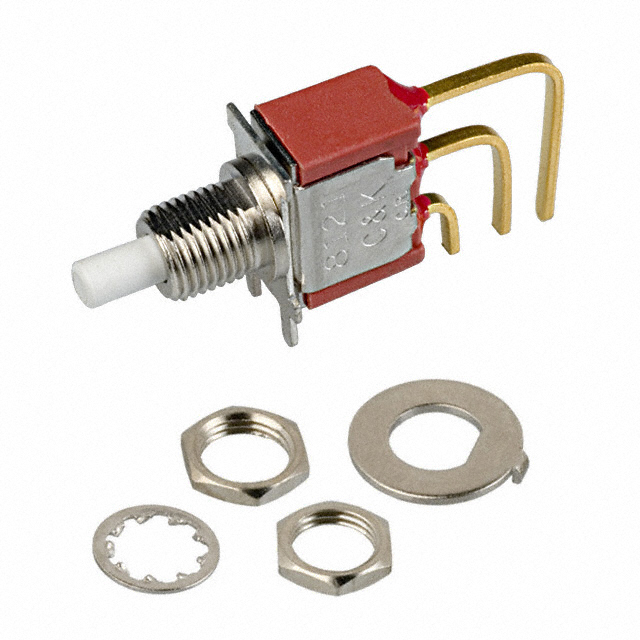

The 8020 series of snap-acting momentary pushbutton switches from C&K are used in telecommunications equipment and computer peripherals because of their positive tactile feel and wide variety of termination options. C&K’s 8020 switches are also epoxy terminal seal-compatible with bottom wash cleaning.
