2141-1521 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

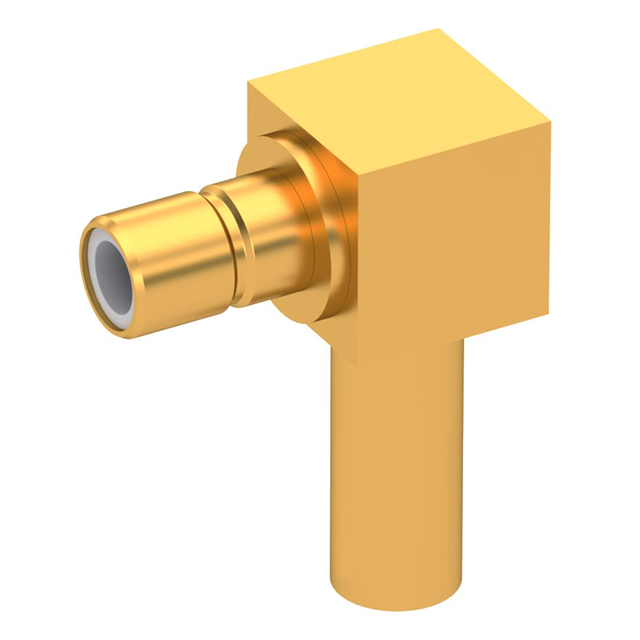

SMB / RIGHT ANGLE JACK MALE CRIM
| Part | Body Material | Mating Cycles | Center Contact Plating | Insertion Loss | Voltage Rating | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Body Finish | Fastening Type | Housing Color | Center Contact Material | Connector Style | Shield Termination | Frequency - Max [Max] | Cable Group | Impedance | Contact Termination | Mounting Type | Connector Type | Number of Ports |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Brass | 500 | Gold | 0.6 dB | 335 V | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Gold | Snap-On | Gold | Brass | SMB | Crimp | 4 GHz | 188 316 RG-174 | 50 Ohms | Crimp | Free Hanging (In-Line) Right Angle | Jack Male Pin | 1 |
