LRA911 Series

Catalog

SWITCH ROCKER SPST 16A 125V

Part	Switch Function	Operating Temperature [Max]	Circuit	Mounting Type	Voltage Rating - AC	Approval Agency	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Termination Style	Illumination Voltage (Nominal)	Electrical Life	Illumination Type, Color	Actuator Type	Color - Actuator/Cap	Actuator Marking	Current Rating (Amps)
Carling Technologies LRA911-CB-B/012V	On-Off	85 °C	SPST	Panel Mount Snap-In	125 V	CSA UL VDE	13.97 mm	28.58 mm	Quick Connect - 0.250" (6.3mm)	12 VAC/DC	100000 Cycles	Blue Incandescent	Concave (Curved) - Illuminated	Blue	No Marking	16 A
Carling Technologies LRA911-RS-B/120N	On-Off	85 °C	SPST	Panel Mount Snap-In	125 V	CSA UL VDE	13.97 mm	28.58 mm	Quick Connect - 0.250" (6.3mm)	120 VAC	100000 Cycles	Neon Red	Concave (Curved) - Illuminated	Red	No Marking	16 A

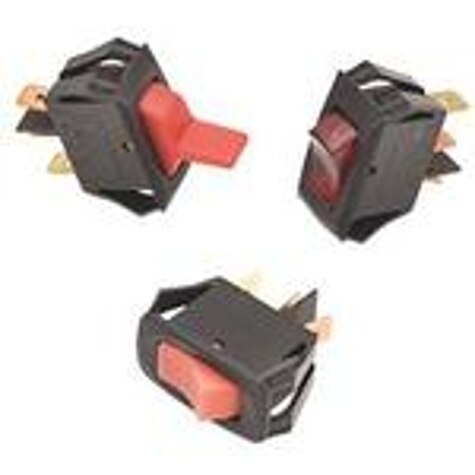

Carling Technologies LRA911-RC-W/250N	On-Off	85 °C	SPST	Panel Mount Snap-In	125 V	CSA UL VDE	13.97 mm	28.58 mm	Quick Connect - 0.250" (6.3mm)	250 VAC	100000 Cycles	Neon White	Concave (Curved) - Illuminated	White	No Marking	16 A
Carling Technologies LRA911-RS-B/250N	On-Off	85 °C	SPST	Panel Mount Snap-In	125 V	CSA UL VDE	13.97 mm	28.58 mm	Quick Connect - 0.250" (6.3mm)	250 VAC	100000 Cycles	Neon Red	Concave (Curved) - Illuminated	Red	No Marking	16 A
Carling Technologies LRA911-RS-W/250N	On-Off	85 °C	SPST	Panel Mount Snap-In	125 V	CSA UL VDE	13.97 mm	28.58 mm	Quick Connect - 0.250" (6.3mm)	250 VAC	100000 Cycles	Neon Red	Concave (Curved) - Illuminated	Red	No Marking	16 A
