PFNF Series
Manufacturer: SCHURTER Inc.
Beta
⌘K

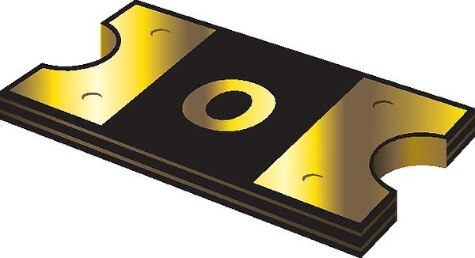

RESETTABLE FUSES - PPTC PFNF PTC FUSE SMT 500 MA (1206)
| Part | Approval Agency | Current - Hold (Ih) (Max) [Max] | Voltage - Max [Max] | Time to Trip | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Current - Trip (It) | Current - Max [Max] | Type | Thickness (Max) [Max] | Thickness (Max) [Max] | Resistance - Post Trip (R1) (Max) [Max] [custom] | Mounting Type | Package / Case | Resistance - Initial (Ri) (Min) [Min] | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | cURus TUV | 500 mA | 13.2 V | 100 ms | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 1 A | 100 A | Polymeric | 0.85 mm | 0.033 in | 700 mOhms | Surface Mount | 1206 (3216 Metric) Concave | 150 mOhms | 85 °C | -40 C |
