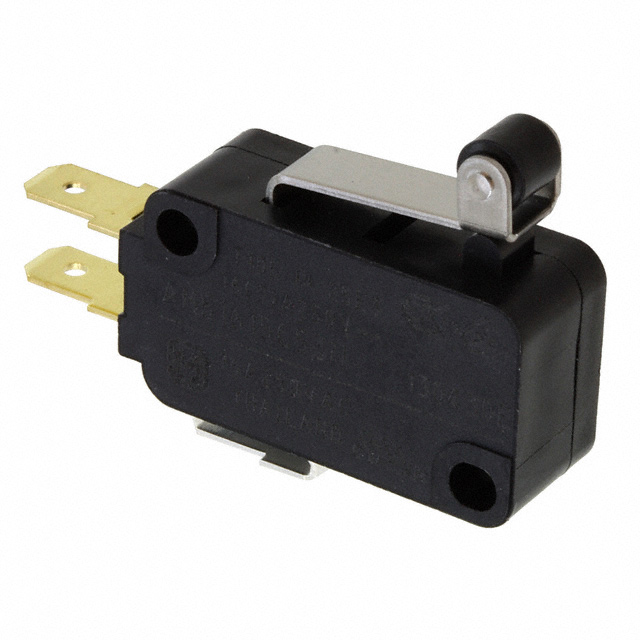

AM51615 Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K
SWITCH SNAP ACTION SPDT 16A 125V
| Part | Circuit | Differential Travel | Differential Travel | Current Rating (Amps) | Mounting Type | Overtravel [custom] | Overtravel [custom] | Termination Style | Features | Operating Temperature [Max] | Operating Temperature [Min] | Mechanical Life | Actuator Type | Pretravel | Pretravel | Release Force | Electrical Life | Operating Force | Operating Position | Operating Position | Voltage Rating - AC | Switch Function | Voltage Rating - DC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | SPDT | 0.5 mm | 0.02 in | 16 A 600 mA | Chassis Mount | 0.035 " | 0.9 mm | Quick Connect | Cadmium Free | 105 ░C | -25 °C | 10000000 Cycles | Lever Roller | 0.063 in | 1.6 mm | 80 gf | 100000 Cycles | 420 gf | 20.7 mm | 0.815 in | 125 V | On-Mom | 125 VDC |
 Panasonic Electronic Components | SPDT | 0.5 mm | 0.02 in | 16 A 600 mA | Chassis Mount | 0.035 " | 0.9 mm | Quick Connect | Cadmium Free | 105 ░C | -25 °C | 10000000 Cycles | Lever Roller | 0.063 in | 1.6 mm | 100000 Cycles | 220 gf | 20.7 mm | 0.815 in | 125 V | On-Mom | 125 VDC | |
Panasonic Electronic Components | SPDT | 0.5 mm | 0.02 in | 16 A 600 mA | Chassis Mount | 0.035 " | 0.9 mm | Quick Connect - 0.250" (6.3mm) | Cadmium Free | 105 ░C | -25 °C | 10000000 Cycles | Lever Roller | 0.063 in | 1.6 mm | 100000 Cycles | 220 gf | 20.7 mm | 0.815 in | 125 V | On-Mom | 125 VDC |
