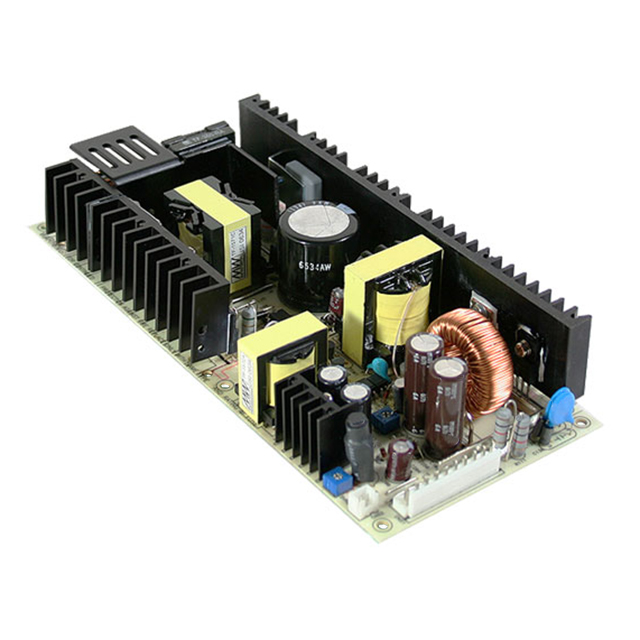

PID-250 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
AC/DC CONVERTER 36V 5V 252W
| Part | Minimum Load Required | Voltage - Output 1 [custom] | Features | Voltage - Input [Max] | Voltage - Input [Min] | Number of Outputs | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Mounting Type | Applications | Voltage - Output 2 | Type | Voltage - Isolation | Current - Output 1 | Efficiency | Power (Watts) | Operating Temperature [Max] | Operating Temperature [Min] | Approval Agency | Current - Output 2 | Voltage - Output 1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | 36 V | Adjustable Output PFC Universal Input | 264 VAC 370 VDC | 90 VAC 127 VDC | 2 | 40 mm | 222 mm | 1.57 " | 8.74 in | 3.74 " | 95 mm | Chassis Mount | ITE (Commercial) | 5 V | Open Frame | 3000 V | 6.3 A | 86 % | 252 W | 70 °C | -20 °C | CB CE cURus TUV | 5 A | ||
MEAN WELL USA Inc. | Adjustable Output PFC Universal Input | 264 VAC 370 VDC | 90 VAC 127 VDC | 2 | 40 mm | 222 mm | 1.57 " | 8.74 in | 3.74 " | 95 mm | Chassis Mount | ITE (Commercial) | 5 V | Open Frame | 3000 V | 15 A | 83 % | 205 W | 70 °C | -20 °C | CB CE cURus TUV | 5 A | 12 V |
