725-070 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 70POS 0.100

Part	Termination Rows [custom]	Material - Insulation	Card Thickness [Max]	Card Thickness [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Number of Rows [custom]	Number of Positions/Bay/Row	Gender	Color	Contact Material	Card Type	Number of Positions	Read Out	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Termination	Pitch	Pitch	Mounting Type
EDAC Inc. 725-070-545-201	2	Polyester Thermoplastic	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Cantilever	2	35	Female	Black	Copper Alloy	Non Specified - Dual Edge	70	Dual	Gold	30 Áin	0.76 Ám	Press-Fit Wire Wrap	0.1 "	2.54 mm	Through Hole

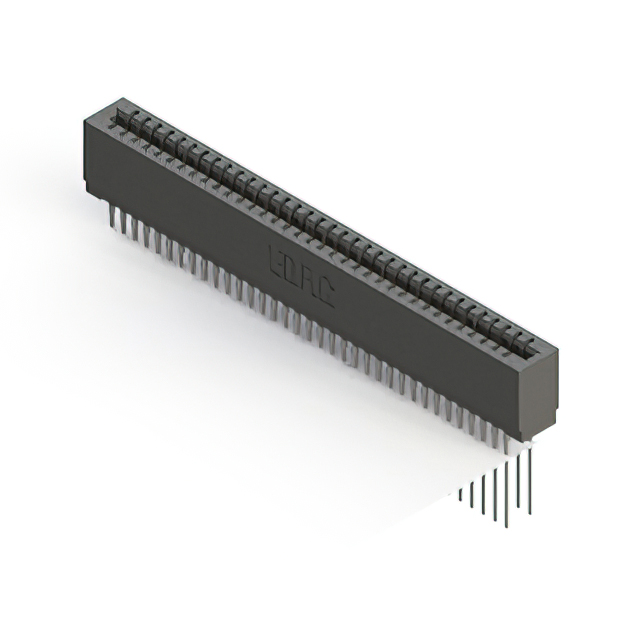

EDAC Inc. 725-070-541-201	2	Polyester Thermoplastic	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Cantilever	2	35	Female	Black	Copper Alloy	Non Specified - Dual Edge	70	Dual	Gold	30 Áin	0.76 Ám	Press-Fit Wire Wrap	0.1 "	2.54 mm	Through Hole

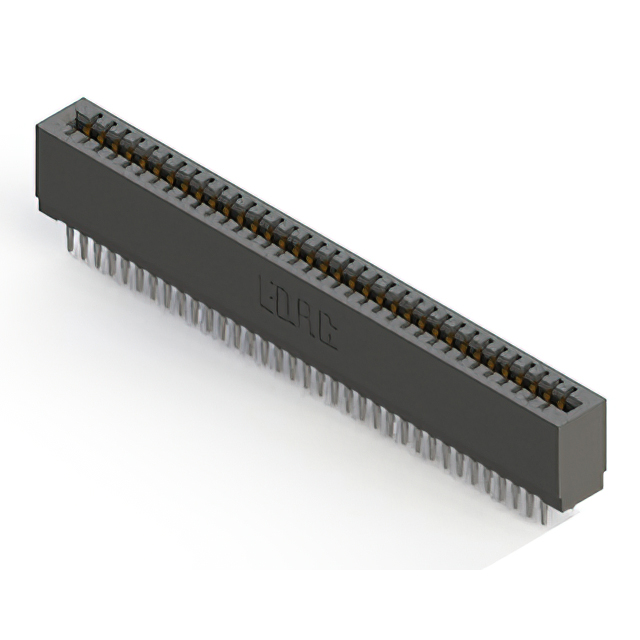

EDAC Inc. 725-070-525-201	2	Polyester Thermoplastic	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Cantilever	2	35	Female	Black	Copper Alloy	Non Specified - Dual Edge	70	Dual	Gold	30 Áin	0.76 Ám	Press-Fit	0.1 "	2.54 mm	Through Hole
EDAC Inc. 725-070-522-201	2	Polyester Thermoplastic	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Cantilever	2	35	Female	Black	Copper Alloy	Non Specified - Dual Edge	70	Dual	Gold	30 Áin	0.76 Ám	Press-Fit	0.1 "	2.54 mm	Through Hole
EDAC Inc. 725-070-540-201	2	Polyester Thermoplastic	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Cantilever	2	35	Female	Black	Copper Alloy	Non Specified - Dual Edge	70	Dual	Gold	30 Áin	0.76 Ám	Press-Fit Wire Wrap	0.1 "	2.54 mm	Through Hole
