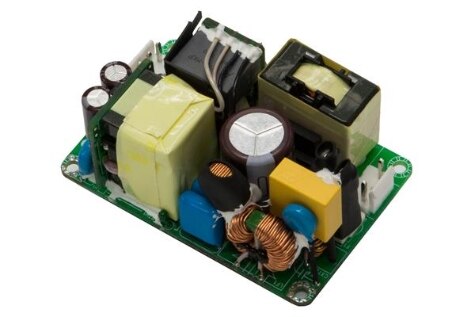

PPWAM150 Series
Switching Power Supplies 150W/18V MED & ITE AC/DC UCHANNEL 2x3
Manufacturer: TT Electronics/BI
Catalog
Switching Power Supplies 150W/18V MED & ITE AC/DC UCHANNEL 2x3
Beta
⌘K
Switching Power Supplies 150W/18V MED & ITE AC/DC UCHANNEL 2x3
Switching Power Supplies 150W/18V MED & ITE AC/DC UCHANNEL 2x3
Switching Power Supplies 150W/18V MED & ITE AC/DC UCHANNEL 2x3
| Part | Approval Agency | Operating Temperature [Min] | Operating Temperature [Max] | Power (Watts) | Power (Watts) | Type | Standard Number | Efficiency | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Voltage - Isolation | Mounting Type | Voltage - Input [Max] | Voltage - Input [Min] | Voltage - Output 1 | Number of Outputs | Current - Output 1 | Applications | Features | Minimum Load Required |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TT Electronics/BI | CB CE cURus FCC TUV | -20 ░C | 70 °C | 100 W | 150 W | Open Frame | 60601-1; 62368-1 | 92 % | 50.8 mm | 1.18 in | 2 in | 3 " | 76.2 mm | 30 mm | 5656 V | Chassis Mount | 264 VAC | 90 VAC | 12 V | 1 | 12.5 A | ITE (Commercial) Medical | DC Input Capable PFC Standby Output Universal Input | |
TT Electronics/BI | CB CE cURus FCC TUV | -20 ░C | 70 °C | 100 W | 150 W | Open Frame | 60601-1; 62368-1 | 92 % | 50.8 mm | 1.18 in | 2 in | 3 " | 76.2 mm | 30 mm | 5656 V | Chassis Mount | 264 VAC | 90 VAC | 15 V | 1 | 10 A | ITE (Commercial) Medical | DC Input Capable PFC Standby Output Universal Input | |
 TT Electronics/BI | CB CE cURus FCC TUV | -20 ░C | 70 °C | 100 W | 150 W | Open Frame | 60601-1; 62368-1 | 92 % | 50.8 mm | 1.18 in | 2 in | 3 " | 76.2 mm | 30 mm | 5656 V | Chassis Mount | 264 VAC | 90 VAC | 48 V | 1 | 3.13 A | ITE (Commercial) Medical | DC Input Capable PFC Standby Output Universal Input | |
TT Electronics/BI | CB CE cURus FCC TUV | -20 °C | 70 °C | 100 W | 150 W | Open Frame | 60601-1 60950-1 62368-1 | 92 % | 50.8 mm | 1.18 in | 2 in | 3 " | 76.2 mm | 30 mm | 5656 V | Chassis Mount | 264 VAC | 90 VAC | 24 V | 1 | 6.25 A | ITE (Commercial) Medical | PFC Universal Input |
