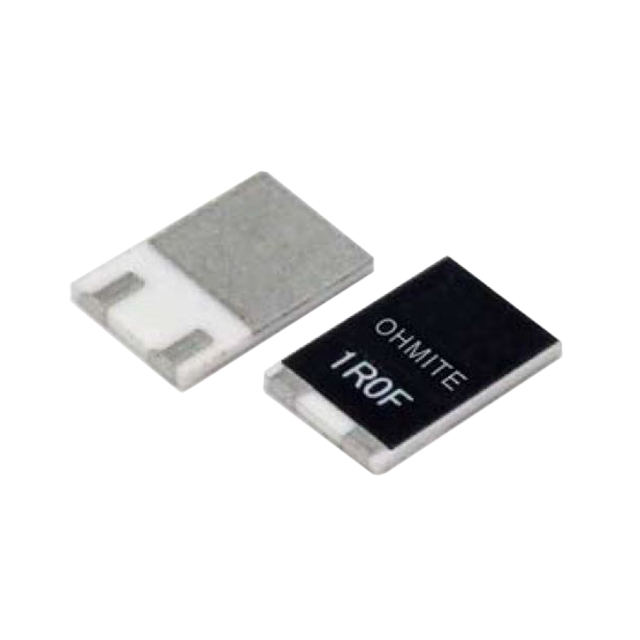

TKH Series

Manufacturer: Ohmite

Catalog

THICK FILM RESISTORS - SMD .50 OHMS 5% 45W

Part	Tolerance	Number of Terminations [custom]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Temperature Coefficient	Resistance	Composition	Features	Supplier Device Package	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Power (Watts)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Ohmite TKH45PR500JE-TR	5 %	2	PFC10 (TO-126 SMT)	175 °C	-55 C	0.323 in	0.472 in	12 mm	8.2 mm	100 ppm/°C	500 mOhms	Thick Film	Pulse Withstanding	TO-252	0.039 in	1 mm	45 W

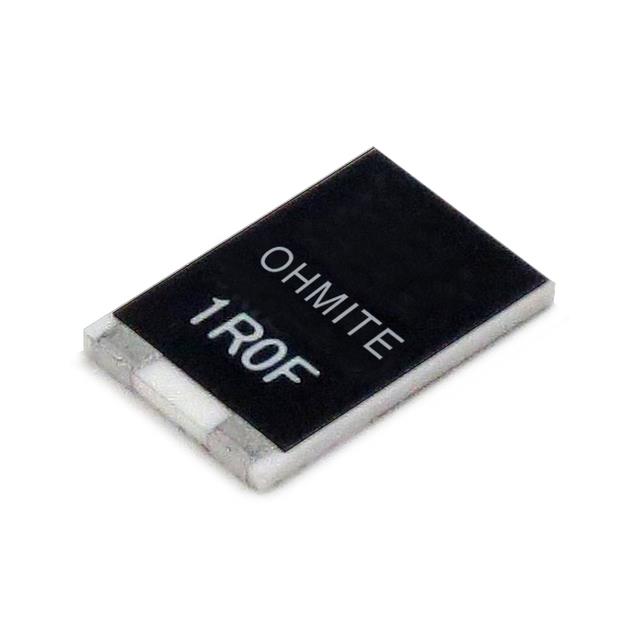

Ohmite TKH55P100RFE-TR	1 %	2	PFC10 (TO-126 SMT)	175 °C	-55 C	0.394 in	0.598 "	15.2 mm	10 mm	100 ppm/°C	100 Ohms	Thick Film	Pulse Withstanding	TO-263			55 W	1.01 mm	0.04 in
