829-22 Series

Catalog

CONN SPRING PISTON 17POS R/A PCB

Part	Connector Type	Pitch	Pitch	Material	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Number of Contacts [custom]	Contact Finish	Mounting Type	Number of Contacts
Mill-Max Manufacturing Corp. 829-22-017-20-001101	Piston	0.1 "	2.54 mm	Copper Alloy	1	20 µin	0.51 µm	17	Gold	Right Angle Through Hole
Mill-Max Manufacturing Corp. 829-22-012-20-001101	Piston	0.1 "	2.54 mm	Copper Alloy	1	20 µin	0.51 µm	12	Gold	Right Angle Through Hole

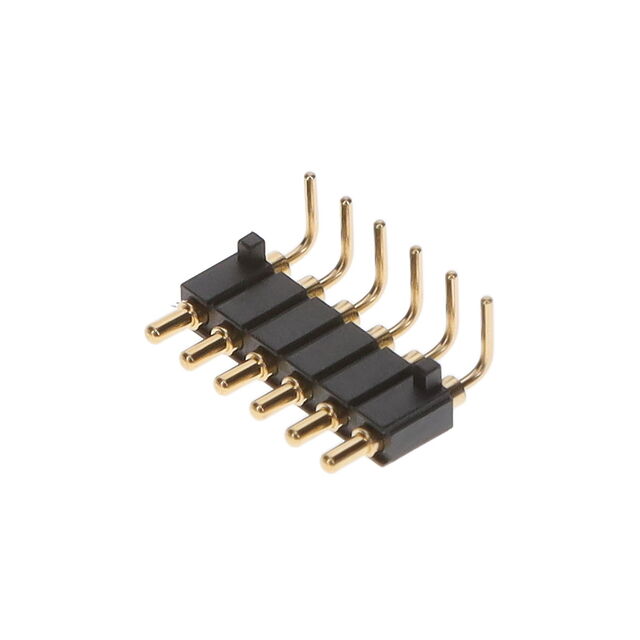

Mill-Max Manufacturing Corp. 829-22-006-20-002101	Piston	0.1 "	2.54 mm	Copper Alloy	1	20 µin	0.51 µm		Gold	Right Angle Through Hole	6

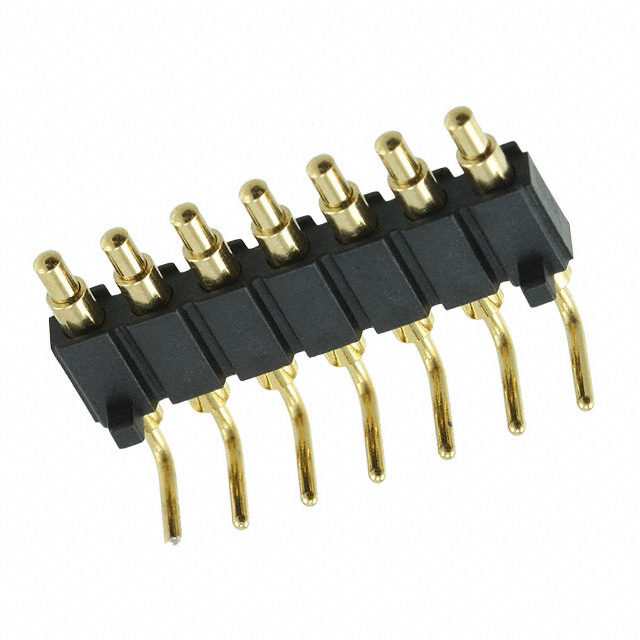

Mill-Max Manufacturing Corp. 829-22-007-20-001101	Piston	0.1 "	2.54 mm	Copper Alloy	1	20 µin	0.51 µm		Gold	Right Angle Through Hole	7

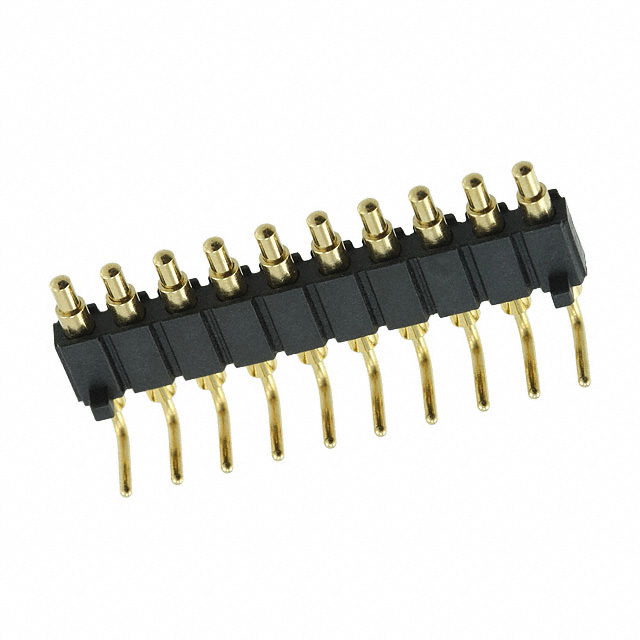

Mill-Max Manufacturing Corp. 829-22-010-20-001101	Piston	0.1 "	2.54 mm	Copper Alloy	1	20 µin	0.51 µm		Gold	Right Angle Through Hole	10
Mill-Max Manufacturing Corp. 829-22-018-20-001101	Piston	0.1 "	2.54 mm	Copper Alloy	1	20 µin	0.51 µm		Gold	Right Angle Through Hole
Mill-Max Manufacturing Corp. 829-22-003-20-002101	Piston	0.1 "	2.54 mm	Copper Alloy	1	20 µin	0.51 µm		Gold	Right Angle Through Hole	3
Mill-Max Manufacturing Corp. 829-22-011-20-002101	Piston	0.1 "	2.54 mm	Copper Alloy	1	20 µin	0.51 µm		Gold	Right Angle Through Hole	11
Mill-Max Manufacturing Corp. 829-22-005-20-001101	Piston	0.1 "	2.54 mm	Copper Alloy	1	20 µin	0.51 µm		Gold	Right Angle Through Hole	5
Mill-Max Manufacturing Corp. 829-22-012-20-002101	Piston	0.1 "	2.54 mm	Copper Alloy	1	20 µin	0.51 µm	12	Gold	Right Angle Through Hole
