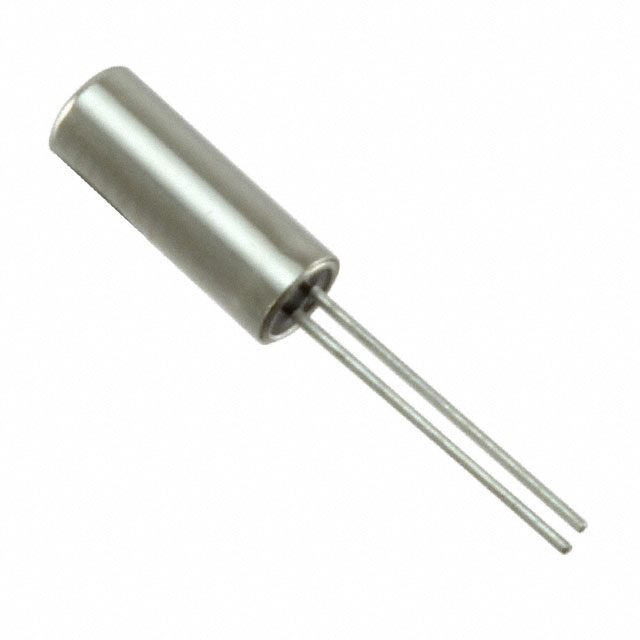

AB308 Series

Catalog

CRYSTALS XTAL 3 X 8 CYLINDRICAL CAN 14.7456MHZ TOL +/-30PPM STAB +/-50PPM -10°C ~ 60°C 16PF 50 OHMS

Part	Package / Case	Type	Mounting Type	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [diameter]	Frequency	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Min]	Operating Temperature [Max]	ESR (Equivalent Series Resistance)	Load Capacitance	Operating Mode	Frequency Tolerance	Frequency Stability
Abracon LLC AB308-14.7456MHZ	Cylindrical Can Radial	MHz Crystal	Through Hole	0.315 "	3 mm	8 mm	0.118 "	14.7456 MHz	0.323 in	8.2 mm	-10 °C	60 °C	50 Ohms	16 pF	Fundamental	30 ppm	50 ppm
Abracon LLC AB308-16.667MHZ	Cylindrical Can Radial	MHz Crystal	Through Hole	0.315 "	3 mm	8 mm	0.118 "	16.667 MHz	0.323 in	8.2 mm	-10 °C	60 °C	50 Ohms	16 pF	Fundamental	30 ppm	50 ppm
Abracon LLC AB308-10.000MHZ	Cylindrical Can Radial	MHz Crystal	Through Hole	0.315 "	3 mm	8 mm	0.118 "	10 MHz	0.323 in	8.2 mm	-10 °C	60 °C	60 Ohms	16 pF	Fundamental	30 ppm	50 ppm
