SCT Series

Catalog

HEATSHRINK TUBING .355" 4:1 BLK

Part	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Min]	Features	Color	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Shrinkage Ratio	Shelf Life	Type	Recovered Wall Thickness	Recovered Wall Thickness	Length	Length	Length	Shrink Temperature	Material	Inner Diameter - Recovered [diameter]	Length [x]	Length [x]	Length [x]

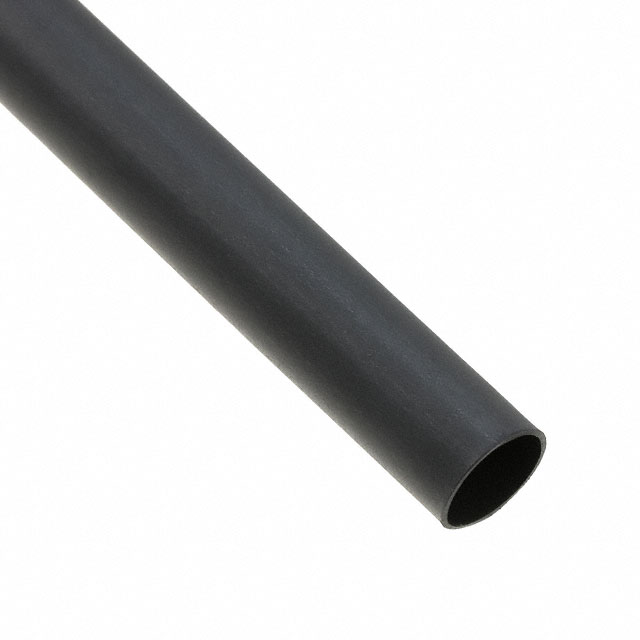

TE Connectivity AMP Connectors SCT-NO.2-C2-0-50MM	0.09 in	2.29 mm	95 °F	35 °C	65 °F	18 °C	Abrasion Resistant Adhesive Lined Flame Retardant Fluid Resistant	Black	9.02 mm	0.355 in	-40 C	150 °C	4 to 1	36 Months	Tubing Semi Rigid	0.06 in	1.52 mm	50 mm	0.164 ft	1.97 in	110 °C	Polyolefin (PO) Irradiated

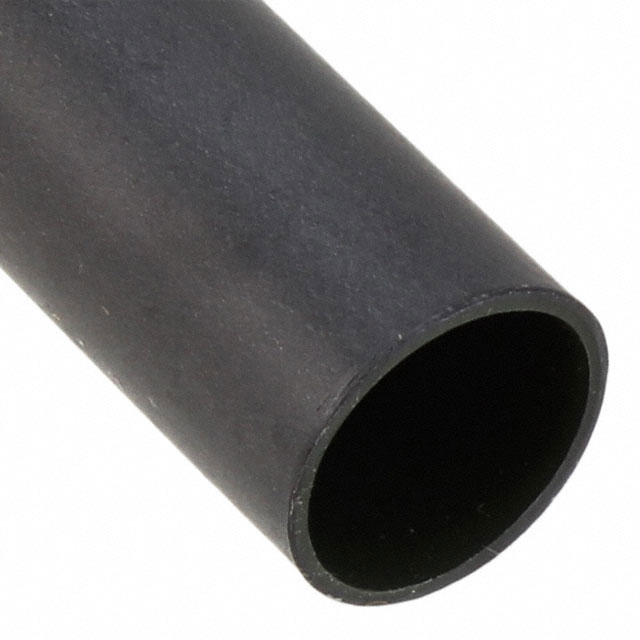

TE Connectivity AMP Connectors SCT-NO.3-E3-0-58MM	0.1 in		95 °F	35 °C	65 °F	18 °C	Abrasion Resistant Adhesive Lined Flame Retardant Fluid Resistant	Black	11.56 mm	0.455 "	-40 C	150 °C	4 to 1	36 Months	Tubing Semi Rigid	0.09 in	2.29 mm				110 °C	Polyolefin (PO) Irradiated	2.54 mm	2.28 "	58 mm	0.19 '
TE Connectivity AMP Connectors SCT-NO.0-E8-0-STK	0.05 in		95 °F	35 °C	65 °F	18 °C	Abrasion Resistant Adhesive Lined Flame Retardant Fluid Resistant	Black	5.08 mm	0.2 in	-40 C	150 °C	4 to 1	36 Months	Tubing Semi Rigid	0.055 in	1.4 mm				110 °C	Polyolefin (PO) Irradiated	1.27 mm		1.22 m	4 ft
