FD Series

Catalog

CHASSIS MOUNT TRANSFORMER, QUICK PACK, SPLIT BOBBIN, 2 X 115V, 12.6V, 100 VA, 50HZ / 60HZ

Part	Current - Output (Max) [Max]	Mounting Type	Termination Style	Termination Style	Termination Style	Power - Max [Max]	Weight [custom]	Weight [custom]	Type	Voltage - Isolation	Size / Dimension [y]	Size / Dimension [x]	Secondary Winding(s)	Voltage - Secondary (Full Load)	Height - Seated (Max) [Max] [z]	Voltage - Primary	Primary Winding(s)	Weight	Weight

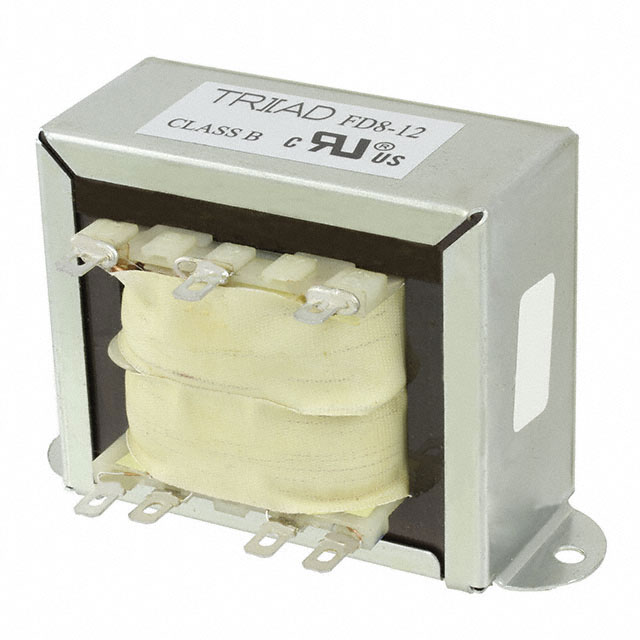

Triad Magnetics FD8-12	8 A	Chassis Mount	4.7 mm	0.187 in	Solder Quick Connect	100 VA	1.3 kg	2.8 lbs	Laminated Core	2500 Vrms	2.25 in	102.39 mm	Single	12.6 V	65.07 mm	115 V 230 V	Dual
Triad Magnetics FD8-10	10 A	Chassis Mount	4.7 mm	0.187 in	Solder Quick Connect	100 VA	1.3 kg	2.8 lbs	Laminated Core	2500 Vrms	2.25 in	102.39 mm	Single	10 V	65.07 mm	115 V 230 V	Dual
Triad Magnetics FD5-56	220 mA	Chassis Mount	4.7 mm	0.187 in	Solder Quick Connect	12 VA			Laminated Core	2500 Vrms	34.93 mm	71.42 mm	Single	56 V	41.28 mm	115 V 230 V	Dual	0.7 lb	317.51 g
