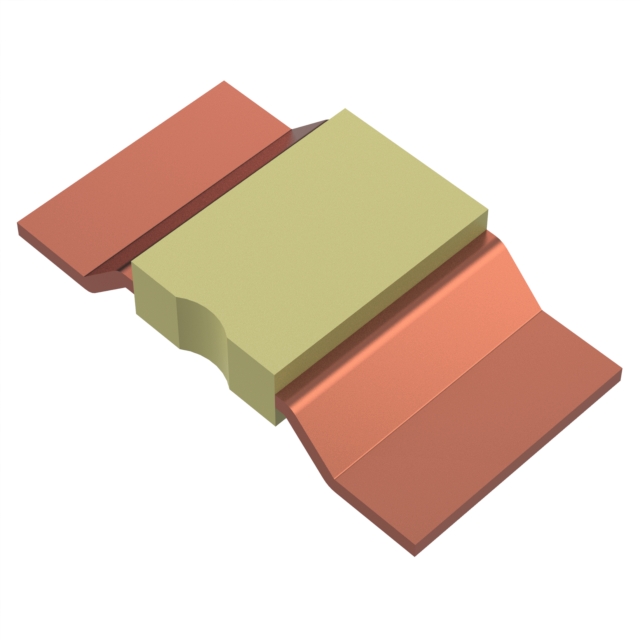

PSR400ITQFC0L20 Series

10x5.2 (3921) size, 12W, 0.2mΩ, High Power Type Metal Plate Shunt Resistor (AEC-Q200 Qualified)

Catalog

10x5.2 (3921) size, 12W, 0.2mΩ, High Power Type Metal Plate Shunt Resistor (AEC-Q200 Qualified)

Part	Package / Case	Ratings	Temperature Coefficient [Max]	Temperature Coefficient [Min]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Features	Operating Temperature [Min]	Operating Temperature [Max]	Composition	Resistance	Temperature Coefficient	Tolerance	Power (Watts)	Number of Terminations [custom]	Supplier Device Package
Rohm Semiconductor PSR400ITQFC0L20	3920 (1052 Metric) Nonstandard	AEC-Q200	175 ppm/°C	75 ppm/°C	5.2 mm	10 mm	0.394 in	0.205 "	0.081 in	2.05 mm	Automotive AEC-Q200 Current Sense	-65 ░C	175 °C	Metal Element	0.2 mOhms	125 ppm/°C	1 %	12 W	2	3921

Catalog

10x5.2 (3921) size, 12W, 0.2mΩ, High Power Type Metal Plate Shunt Resistor (AEC-Q200 Qualified)

Description

PSR400 series is ideal for current detection under high current circuit.It is ideal for sets that require high power, such as in-vehicle, industrial equipment, and large household appliances. In addition to stable resistance values under overcurrent loads, these products are highly accurate and reliable, achieving excellent resistance temperature coefficient (TCR) even in the low resistance range.
