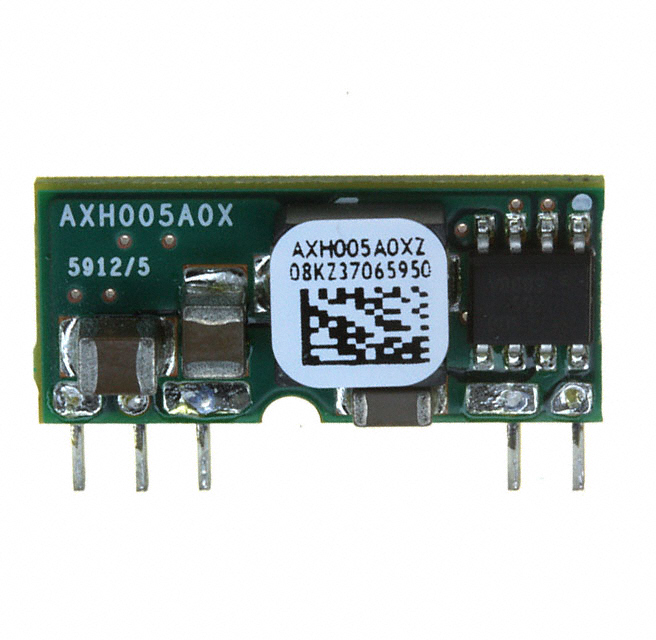

Austin MicroLynx Series
Manufacturer: OmniOn Power™
Beta
⌘K
NON-ISOLATED DC/DC CONVERTERS SIP IN 3.0-5.5VDC OUT 0.75-3.63VDC 5A
| Part | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Current - Output (Max) | Power (Watts) | Package / Case | Efficiency | Type | Number of Outputs | Mounting Type | Control Features | Voltage - Output 1 [Max] | Voltage - Output 1 [Min] | Applications | Features | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input (Max) [Max] | Voltage - Input (Min) [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 OmniOn Power™ | 22.9 mm | 0.9 in | 0.26 in | 10.2 mm | 6.6 mm | 0.4 " | 5 A | 18 W | 5-SIP Module | 94 % | Non-Isolated PoL Module | 1 | Through Hole | Active Low Enable | 3.6 V | 0.8 V | ITE (Commercial) | OCP OTP Remote On/Off UVLO | 85 °C | -40 C | 5.5 V | 3 V |
 OmniOn Power™ | 20.3 mm | 0.8 " | 0.45 in | 6.2 mm | 11.4 mm | 0.25 " | 5 A | 18 W | 5-SMD Module | 94 % | Non-Isolated PoL Module | 1 | Surface Mount | Active Low Enable | 3.6 V | 0.8 V | ITE (Commercial) | OCP OTP Remote On/Off UVLO | 85 °C | -40 C | 5.5 V | 3 V |
OmniOn Power™ | 22.9 mm | 0.9 in | 0.26 in | 10.2 mm | 6.6 mm | 0.4 " | 5 A | 18 W | 5-SIP Module | 94 % | Non-Isolated PoL Module | 1 | Through Hole | Active Low Enable | 3.6 V | 0.8 V | ITE (Commercial) | OCP OTP Remote On/Off UVLO | 85 °C | -40 C | 5.5 V | 3 V |
