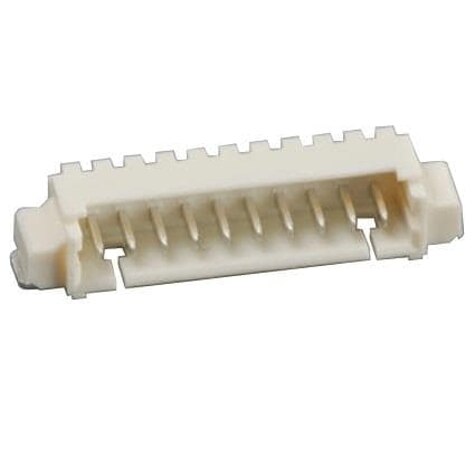

1.25mm Pitch, PicoBlade PCB Header, Single Row, Vertical, Surface Mount, Gold Flash Plating, 10 Circuits, Tape and Reel
1.25mm Pitch, PicoBlade PCB Header, Single Row, Vertical, Surface Mount, Gold Flash Plating, 10 Circuits, Tape and Reel
1.25mm Pitch, PicoBlade PCB Header, Single Row, Vertical, Surface Mount, Gold Flash Plating, 10 Circuits, Tape and Reel
| Part | Contact Type | Insulation Height [z] | Insulation Height [z] | Style | Termination | Number of Positions Loaded | Insulation Material | Contact Finish - Post | Contact Shape | Mounting Type | Pitch - Mating | Pitch - Mating | Number of Rows | Shrouding | Fastening Type | Contact Material | Features | Insulation Color | Contact Finish Thickness - Mating [custom] | Contact Finish Thickness - Mating [custom] | Connector Type | Number of Positions | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Male Blade | 0.185 in | 4.7 mm | Board to Cable/Wire | Solder | All | Nylon Polyamide (PA) | Tin | Rectangular | Surface Mount | 0.049 in | 1.25 mm | 1 | Shrouded - 3 Wall | Detent Lock | Phosphor Bronze | Solder Retention | Natural | 39.4 µin | 1 µm | Header | 10 | UL94 V-0 |
