77129 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

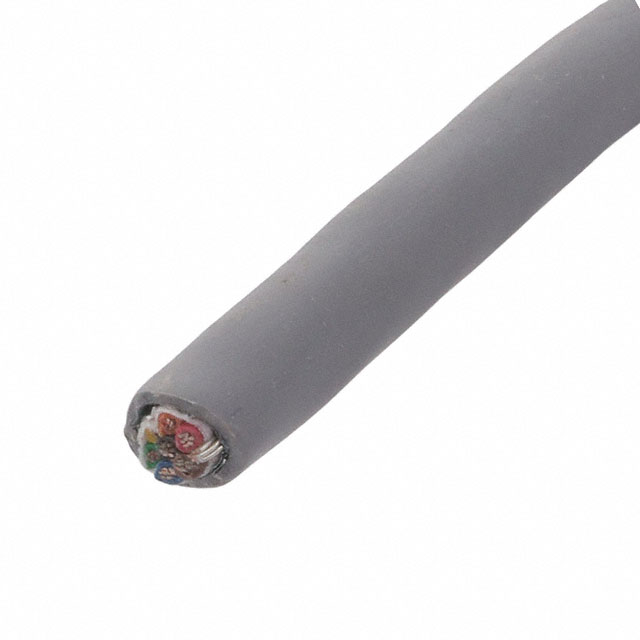

CABLE 7COND 18AWG SHLD 100=100'
| Part | Shield Material | Shield Coverage | Number of Conductors | Voltage | Conductor Insulation | Cable Type | Jacket (Insulation) Material | Shield Type | Conductor Strand [custom] | Conductor Strand [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Material | Ratings | Wire Gauge | Features | Jacket Color | Length [x] | Length [x] | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum | 100 % | 7 | 600 V | Polyphenylene Ether Modified (mPPE) | Multi-Conductor | Polyphenylene Ether Modified (mPPE) | Foil | 16 | 30 AWG | -50 °C | 105 ░C | 0.813 mm | 0.032 in | 6.99 mm | 0.275 in | Copper Tinned | ISO 10993 | 18 AWG | Biological Compatibility | Slate | ||||
ALPHA WIRE | Aluminum | 100 % | 7 | 600 V | Polyphenylene Ether Modified (mPPE) | Multi-Conductor | Polyphenylene Ether Modified (mPPE) | Foil | 16 | 30 AWG | -50 °C | 105 ░C | 0.813 mm | 0.032 in | 6.99 mm | 0.275 in | Copper Tinned | ISO 10993 | 18 AWG | Biological Compatibility | Slate | 100 ft | 30.5 m | ||
 ALPHA WIRE | Aluminum | 100 % | 7 | 600 V | Polyphenylene Ether Modified (mPPE) | Multi-Conductor | Polyphenylene Ether Modified (mPPE) | Foil | 16 | 30 AWG | -50 °C | 105 ░C | 0.813 mm | 0.032 in | 6.99 mm | 0.275 in | Copper Tinned | ISO 10993 | 18 AWG | Biological Compatibility | Slate | 304.8 m | 1000 ft |
