09370101 Series
Manufacturer: HARTING
Beta
⌘K
HAN M HOOD TOP ENTRY LC 4 PEGS PG 16 ROHS COMPLIANT: NA
| Part | Thread Size | Housing Material | Housing Color | Operating Temperature [Max] | Operating Temperature [Min] | Housing Finish | Style | Connector Type | Lock Location | Ingress Protection | Size | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Features | Size / Dimension [y] | Size / Dimension [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

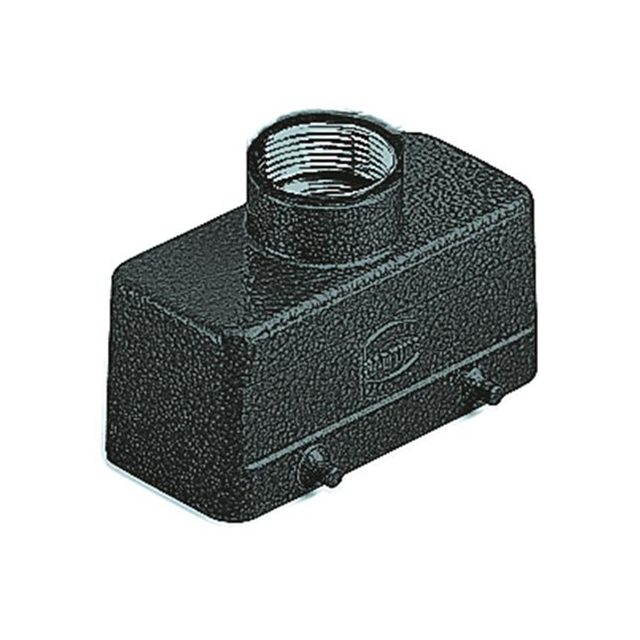

 HARTING | PG16 | Aluminum Die Cast | Black | 125 °C | -40 C | Powder Coated | Top Entry | Hood | Locking Clip (2) on Base Bottom | IP65 - Dust Tight Water Resistant | 10B | 72.6 mm | 1.772 in | 1.693 " | 43 mm | 2.858 in | 45 mm | |||
 HARTING | PG16 | Aluminum Die Cast | Black | 125 °C | -40 C | Powder Coated | Side Entry | Base - Box Mount | Locking Clip (2) on Base Bottom | IP65 - Dust Tight Water Resistant | 10B | 94 mm | 2.118 in | 2.047 in | 52 mm | 3.701 in | 53.8 mm | Feed Through | ||

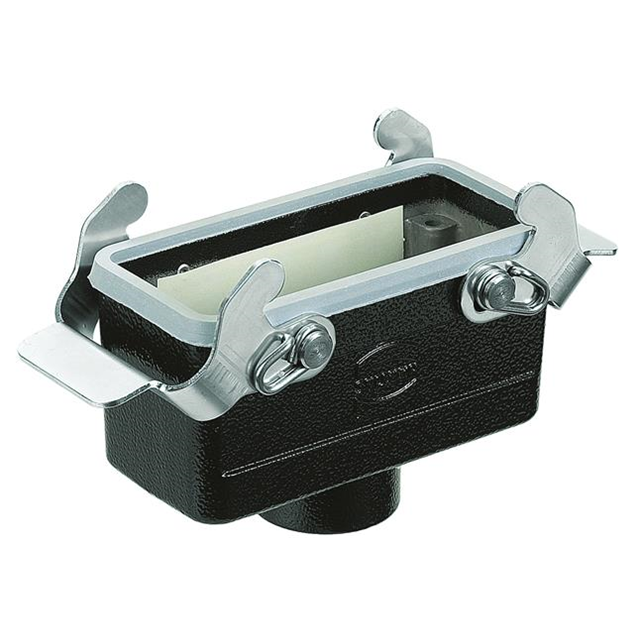

 HARTING | PG16 | Aluminum Die Cast | Black | 125 °C | -40 C | Powder Coated | Bottom Entry Top or Bottom Entry | Hood - Coupling | Locking Clip (2) on Hood Top | IP65 - Dust Tight Water Resistant | 10B | 72.6 mm | 1.866 " | 1.693 " | 2.858 in | Cable to Cable | 43 mm | 47.4 mm |
