3SE5212 Series

Manufacturer: Siemens

Catalog

ENCL, LIMSW, METAL, 31MM, CORROS

Part	Accessory Type	For Use With/Related Products	Operating Force	Voltage Rating - DC	Termination Style	Actuator Type	Voltage Rating - AC	Ingress Protection	Switch Function	Current Rating (Amps)	Circuit	Mounting Type	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]	Mechanical Life
Siemens 3SE52120AC051CA0	Enclosure	Position Switch

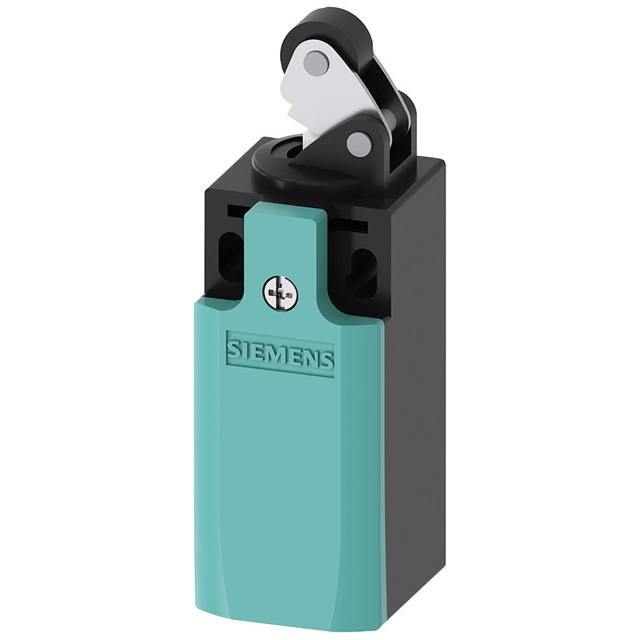

Siemens 3SE52120BE10			1020 gf	24 V	Screw Terminal	Roller Top Rotary	120 V	IP66 IP67	Off-Mom On-Mom	3 A 6 A	DPST-NO/NC	Chassis Mount	100000 Cycles	85 °C	-25 °C	15000000 Cycles
Siemens 3SE52120KC05			2039 gf	24 V	Screw Terminal	Round (Pin Plunger)	120 V	IP66 IP67	Off-Mom On-Mom	3 A 6 A	3PST-2NC/1NO	Chassis Mount	100000 Cycles	85 °C	-25 °C	15000000 Cycles
Siemens 3SE52120LF10			1020 gf	24 V	Screw Terminal	Roller Top Rotary	120 V	IP66 IP67	Off-Mom On-Mom	3 A 6 A	3PST-2NC/1NO	Chassis Mount	100000 Cycles	85 °C	-25 °C	15000000 Cycles
Siemens 3SE52120LE10			1020 gf	24 V	Screw Terminal	Roller Top Rotary	120 V	IP66 IP67	Off-Mom On-Mom	3 A 6 A	3PST-2NC/1NO	Chassis Mount	100000 Cycles	85 °C	-25 °C	15000000 Cycles
Siemens 3SE52120KF10			1020 gf	24 V	Screw Terminal	Roller Top Rotary	120 V	IP66 IP67	Off-Mom On-Mom	3 A 6 A	3PST-2NC/1NO	Chassis Mount	100000 Cycles	85 °C	-25 °C	15000000 Cycles
Siemens 3SE52120CF10			1020 gf	24 V	Screw Terminal	Roller Top Rotary	120 V	IP66 IP67	Off-Mom On-Mom	3 A 6 A	DPST-NO/NC	Chassis Mount	100000 Cycles	85 °C	-25 °C	15000000 Cycles
Siemens 3SE52120MC051CA0			2039 gf	24 V	Screw Terminal	Round (Pin Plunger)	120 V	IP66 IP67	Off-Mom On-Mom	3 A 6 A	3PST-2NC/1NO	Chassis Mount	100000 Cycles	85 °C	-25 °C	15000000 Cycles
Siemens 3SE52120KK60				24 V	Screw Terminal	Side Rotary Adjustable Roller	120 V	IP66 IP67	Off-Mom On-Mom	3 A 6 A	3PST-2NC/1NO	Chassis Mount	100000 Cycles	85 °C	-25 °C	15000000 Cycles

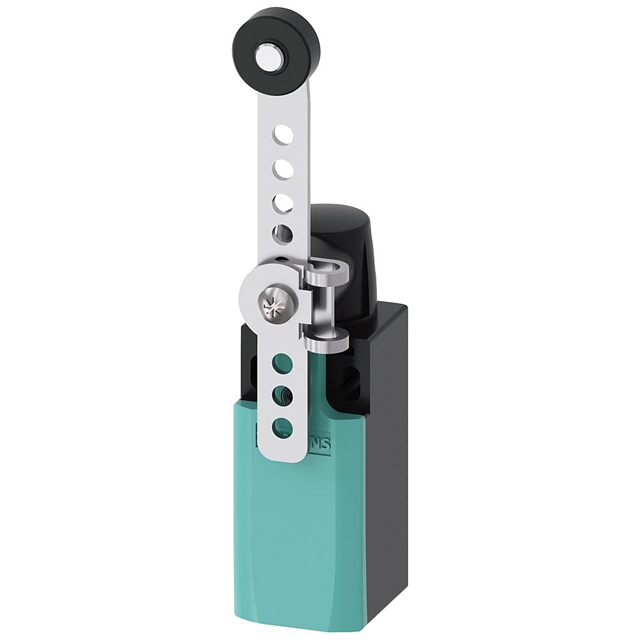

Siemens 3SE52120CK60				24 V	Screw Terminal	Side Rotary Adjustable Roller	120 V	IP66 IP67	Off-Mom On-Mom	3 A 6 A	DPST-NO/NC	Chassis Mount	100000 Cycles	85 °C	-25 °C	15000000 Cycles
