C4ASPB Series

Manufacturer: KEMET

Catalog

CAP FILM 0.47UF 5% 1.2KVDC RAD

Part	Tolerance	Dielectric Material	Lead Spacing	Lead Spacing	Applications	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Package / Case	Voltage Rating - DC	Voltage Rating - DC	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Mounting Type	ESR (Equivalent Series Resistance)	Capacitance	Size / Dimension [y]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]

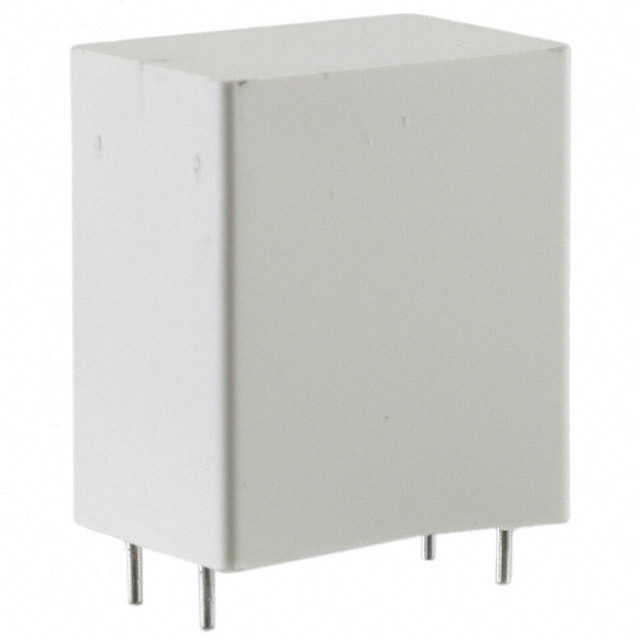

KEMET C4ASPBW3470A3GJ	5 %	Polypropylene (PP) Metallized	27.5 mm	1.083 in	Snubber	0.866 in	1.26 in	32 mm	22 mm	37 mm	1.457 in	Radial - 4 Leads	1.2 kV	1200 V	630 V	85 °C	-40 C	PC Pins	Through Hole	3.7 mOhms	0.47 µF
KEMET C4ASPBW4120A3JJ	5 %	Polypropylene (PP) Metallized	37.5 mm	1.476 in	Snubber	1.102 "	1.673 "	42.5 mm		37 mm	1.457 in	Radial - 4 Leads	1.2 kV	1200 V	630 V	85 °C	-40 C	PC Pins	Through Hole	2.9 mOhms	1.2 µF	28 mm
KEMET C4ASPBW3680A3FJ	5 %	Polypropylene (PP) Metallized	37.5 mm	1.476 in	Snubber	0.787 in	1.634 in	41.5 mm	20 mm			Radial - 4 Leads	1.2 kV	1200 V	630 V	85 °C	-40 C	PC Pins	Through Hole	4.9 mOhm	0.68 µF		40 mm	1.575 in

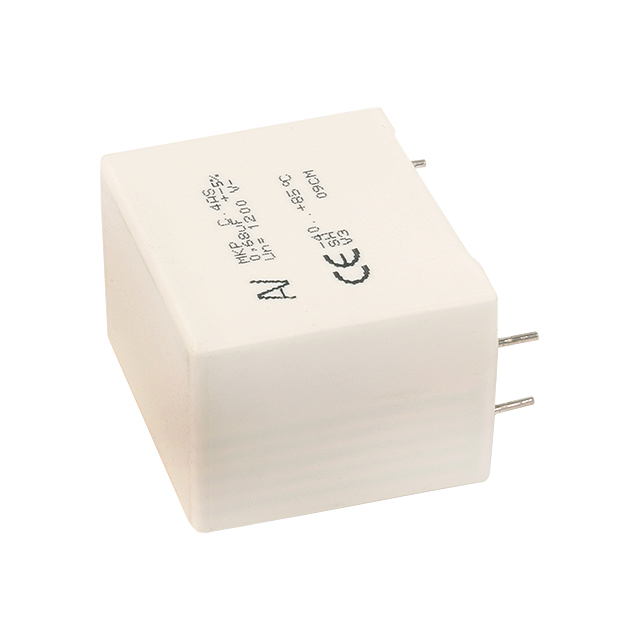

KEMET C4ASPBW4100A3FJ	5 %	Polypropylene (PP) Metallized	37.5 mm	1.476 in	Snubber	0.787 in	1.634 in	41.5 mm	20 mm			Radial - 4 Leads	1.2 kV	1200 V	630 V	85 °C	-40 C	PC Pins	Through Hole	3.5 mOhms	1 µF		40 mm	1.575 in
KEMET C4ASPBW4250A3MJ	5 %	Polypropylene (PP) Metallized	52.5 mm	2.067 in	Snubber	1.181 in	2.264 in	57.5 mm	30 mm		1.772 "	Radial - 4 Leads	1.2 kV	1200 V	630 V	85 °C	-40 C	PC Pins	Through Hole	3.1 mOhms	2.5 µF				45 mm
