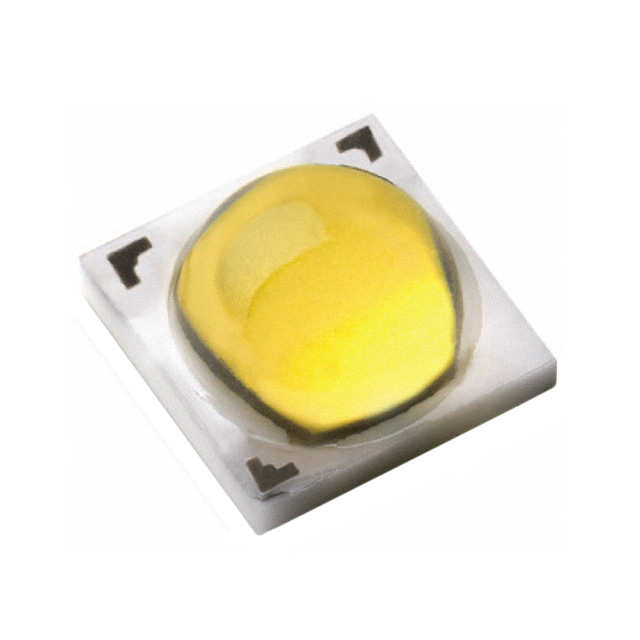

LXH8-FW Series

Manufacturer: Lumileds

Catalog

LED LUXEON WARM WHT 3000K 2SMD

Part	Thermal Resistance of Package	Supplier Device Package	CCT (K)	CCT (K)	Flux @ 85°C, Current - Test	Lumens/Watt @ Current - Test	Voltage - Forward (Vf) (Typ)	Mounting Type	CRI (Color Rendering Index)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Current - Max [Max]	Color	Viewing Angle
Lumileds LXH8-FW30-51	3 °C/W	2-SMD	3000 K	5-Step MacAdam Ellipse	197 lm	101 lm/W	2.8 V	Surface Mount	80	2.12 mm	0.083 "	2-SMD No Lead Exposed Pad	0.146 in	3.7 mm	0.146 in	3.7 mm	1.05 A	Warm White	120 °
Lumileds LXH8-FW35-52	3 °C/W	2-SMD			208 lm	106 lm/W	2.8 V	Surface Mount	80	2.12 mm	0.083 "	2-SMD No Lead Exposed Pad	0.146 in	3.7 mm	0.146 in	3.7 mm	1.05 A	Warm White	120 °
Lumileds LXH8-FW27-3	3 °C/W		2700 K	3-Step MacAdam Ellipse	186 lm	95 lm/W	2.8 V	Surface Mount	80	2.12 mm	0.083 "	2-SMD No Lead Exposed Pad	0.146 in	3.7 mm	0.146 in	3.7 mm	1.2 A	Warm White	120 °
Lumileds LXH8-FW27-PX12	3 °C/W	2-SMD	2700 K		186 lm	95 lm/W	2.8 V	Surface Mount	80	2.12 mm	0.083 "	2-SMD No Lead Exposed Pad	0.146 in	3.7 mm	0.146 in	3.7 mm	1.05 A	Warm White	120 °
Lumileds LXH8-FW50-367	3 °C/W	2-SMD	5000 K	3-Step MacAdam Ellipse	222 lm	113 lm/W	2.8 V	Surface Mount	80	2.12 mm	0.083 "	2-SMD No Lead Exposed Pad	0.146 in	3.7 mm	0.146 in	3.7 mm	1.05 A	Cool White	120 °
Lumileds LXH8-FW50-366	3 °C/W	2-SMD	5000 K	3-Step MacAdam Ellipse	222 lm	113 lm/W	2.8 V	Surface Mount	80	2.12 mm	0.083 "	2-SMD No Lead Exposed Pad	0.146 in	3.7 mm	0.146 in	3.7 mm	1.05 A	Cool White	120 °
Lumileds LXH8-FW30-52	3 °C/W	2-SMD	3000 K	5-Step MacAdam Ellipse	197 lm	101 lm/W	2.8 V	Surface Mount	80	2.12 mm	0.083 "	2-SMD No Lead Exposed Pad	0.146 in	3.7 mm	0.146 in	3.7 mm	1.05 A	Warm White	120 °
Lumileds LXH8-FW30-296	3 °C/W	2-SMD	3000 K		197 lm	101 lm/W	2.8 V	Surface Mount	80	2.12 mm	0.083 "	2-SMD No Lead Exposed Pad	0.146 in	3.7 mm	0.146 in	3.7 mm	1.05 A	Warm White	120 °
Lumileds LXH8-FW40-444	3 °C/W	2-SMD	4000 K		212 lm	108 lm/W	2.8 V	Surface Mount	80	2.12 mm	0.083 "	2-SMD No Lead Exposed Pad	0.146 in	3.7 mm	0.146 in	3.7 mm	1.05 A	Neutral White	120 °
Lumileds LXH8-FW40-328	3 °C/W	2-SMD	4000 K	3-Step MacAdam Ellipse	212 lm	108 lm/W	2.8 V	Surface Mount	80	2.12 mm	0.083 "	2-SMD No Lead Exposed Pad	0.146 in	3.7 mm	0.146 in	3.7 mm	1.05 A	Neutral White	120 °
