CAR1C40 Series
Manufacturer: Hasco Relays
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

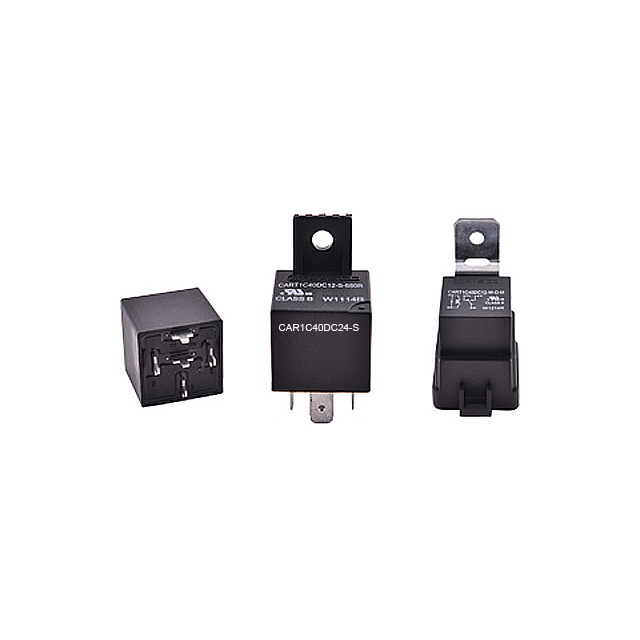

CAR40 SERIES, SPDT, 40A, DC24V C
| Part | Contact Material | Release Time | Coil Type | Quick Connect Size (0.250") | Termination Style | Contact Rating (Current) | Operating Temperature (Min) | Operating Temperature (Max) | Switching Voltage DC (Max) | Contact Form | Operate Time | Coil Current | Must Operate Voltage | Mounting Type | Must Release Voltage | Coil Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hasco Relays | Silver Alloy | 10 ms | Non Latching | 0.25 in | Plug In Quick Connect | 40 A | -40 °C | 85 °C | 14 VDC | 1 C Form SPDT | 10 ms | 0.075 A | 16.8 VDC | Socketable | 2.4 V | 24 VDC |
