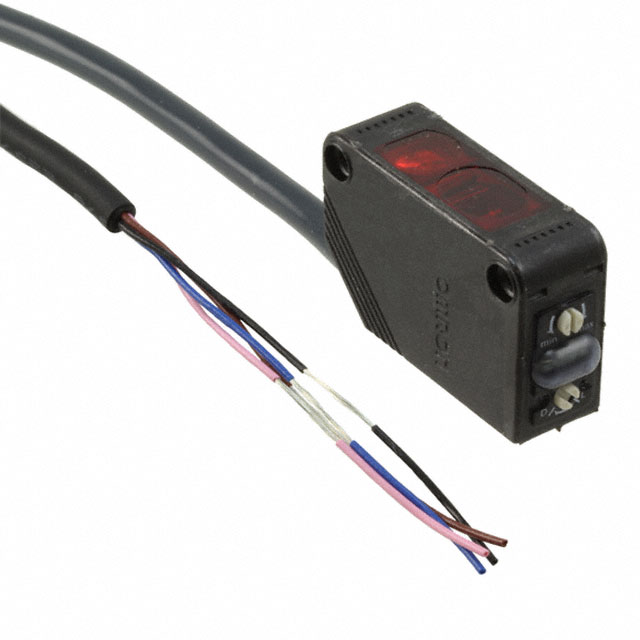

E3Z-LS63 Series
Manufacturer: Omron Automation and Safety
Beta
⌘K
SENSOR REFLECTIVE 20MM NPN DO/LO
| Part | Ingress Protection | Connection Method | Voltage - Supply [Min] | Voltage - Supply [Max] | Response Time | Sensing Method | Light Source | Adjustment Type | Sensing Distance [Max] | Sensing Distance [Min] | Sensing Distance [Min] | Sensing Distance [Max] | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Automation and Safety | IEC IP67 IP67 IEC | Cable | 12 VDC | 24 V | 1 ms | Diffuse Reflective | RED (650nm) | Five-Turn Endless Adjuster | 0.787 in | 0.079 in | 2 mm | 20 mm | 55 °C | -25 °C |
 Omron Automation and Safety | IEC IP67 IP67 IEC | Cable | 12 VDC | 24 V | 1 ms | Background Suppression Reflective | RED (650nm) | Five-Turn Endless Adjuster | 0.787 in | 0.079 in | 2 mm | 20 mm | 55 °C | -25 °C |
