10220 Series

Catalog

D SUB CONNECTOR, MINI D (RIBBON CONNECTOR), RECEPTACLE, 102 SERIES, 20 CONTACTS, SOLDER

Part	Connector Style	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Flange Feature	Termination	Number of Positions	Number of Rows [custom]	Features	Connector Type
3M Electronic Specialty 10220-6212PL	Outer Shroud Contacts	Gold	20 µin	0.51 µm	Through Hole	Housing/Shell (M2.6)	Solder	20	2	Board Guide Shielded	Receptacle

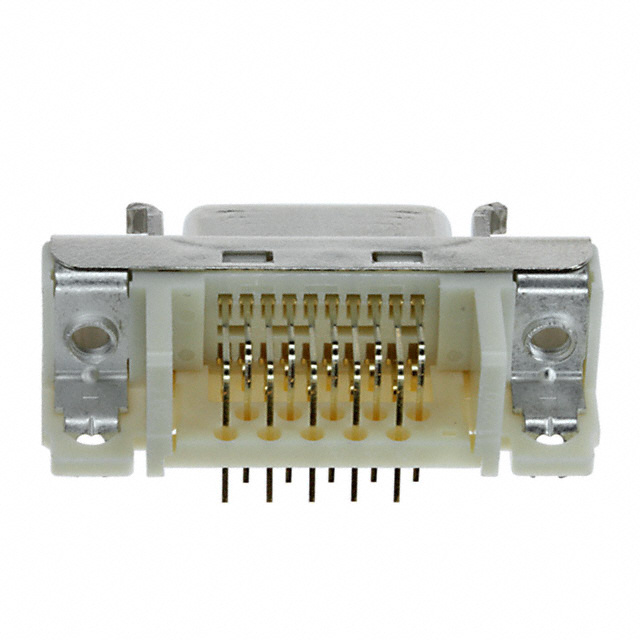

3M Electronic Specialty 10220-55H3PC	Outer Shroud Contacts	Gold	30 Áin	0.76 Ám	Panel Mount Right Angle Through Hole	Housing/Shell (4-40) Latchblocks	Solder	20	2	Board Lock Shielded	Receptacle
3M Electronic Specialty 10220-2200VE	Outer Shroud Contacts	Gold	20 µin	0.51 µm	Surface Mount	Housing/Shell (M2.6)	Solder	20	2	Board Guide Shielded	Receptacle
3M Electronic Specialty 10220-52B2JL	Outer Shroud Contacts	Gold	11.8 Áin	0.3 Ám	Right Angle Through Hole		Solder	20	2		Receptacle
3M Electronic Specialty 10220-6212PC	Outer Shroud Contacts	Gold	30 Áin	0.76 Ám	Panel Mount Through Hole	Housing/Shell (M2.6)	Solder	20	2	Shielded	Receptacle
3M Electronic Specialty 10220-2210VE	Outer Shroud Contacts	Gold	20 µin	0.51 µm	Surface Mount	Housing/Shell (M2.6)	Solder	20	2	Board Guide Shielded	Receptacle
3M Electronic Specialty 10220-55G3JL	Outer Shroud Contacts	Gold	8 µin	0.203 çm	Panel Mount Right Angle Through Hole	Housing/Shell (M2.6)	Solder	20	2	Board Lock Shielded	Receptacle
3M Electronic Specialty 10220-0210EC	Outer Shroud Contacts	Gold	30 Áin	0.76 Ám	Free Hanging (In-Line)	Housing/Shell (M2.6)	IDC	20	2	Shielded	Receptacle
3M Electronic Specialty 10220-M218PE	Outer Shroud Contacts	Gold	20 µin	0.51 µm	Panel Mount Right Angle Through Hole	Housing/Shell (M2.6)	Solder	20	2	Shielded	Stacked 2 Receptacles
3M Electronic Specialty 10220-M218VE	Outer Shroud Contacts	Gold	20 µin	0.51 µm	Panel Mount Right Angle Through Hole	Housing/Shell (M2.6)	Solder	20	2	Shielded	Stacked 2 Receptacles
