CPT-407 Series

Catalog

BUZZER PIEZO 14V 35.5MM FLANGE

Part	Operating Temperature [Max]	Operating Temperature [Min]	Current - Supply	Voltage Range [Max]	Voltage Range [Min]	Frequency	Termination	Operating Mode	Mounting Type	Technology	Size / Dimension [diameter]	Size / Dimension [diameter]	Input Type	Driver Circuitry	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Sound Pressure Level (SPL)	Voltage - Rated	Port Location

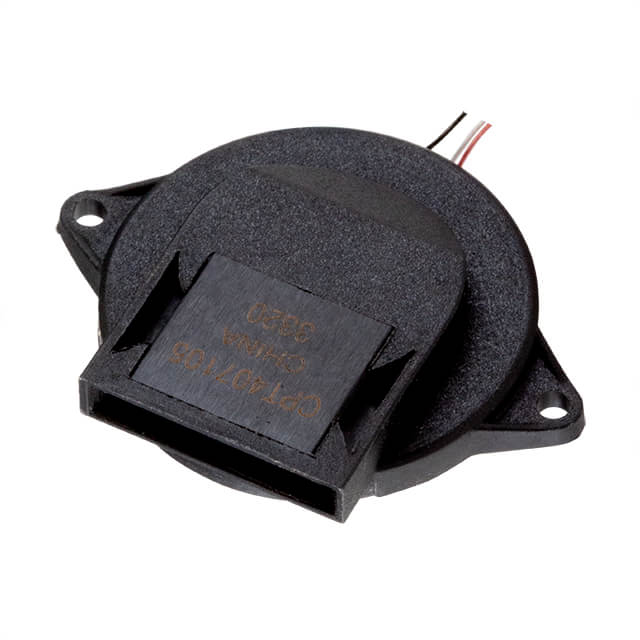

Same Sky (Formerly CUI Devices) CPT-407-105-L60	85 °C	-30 ░C	45 mA	16 V	6 VDC	3.2 kHz	Wire Leads with Connector	Single Tone	Flange Panel Mount	Piezo	35.5 mm	1.398 in	DC	Externally Driven Transducer	7.15 mm	0.281 in	105 dB	14 V	Side
Same Sky (Formerly CUI Devices) CPT-407-105-L60	85 °C	-30 ░C	45 mA	16 V	6 VDC	3.2 kHz	Wire Leads with Connector	Single Tone	Flange Panel Mount	Piezo	35.5 mm	1.398 in	DC	Externally Driven Transducer	7.15 mm	0.281 in	105 dB	14 V	Side
