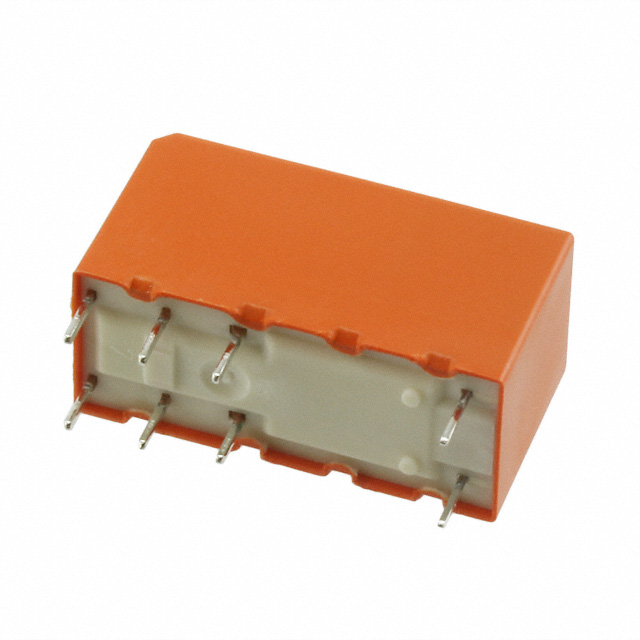

RZ03-1C4 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
RELAY GEN PURPOSE SPDT 16A 5V
| Part | Coil Resistance | Approval Agency | Contact Rating (Current) | Load - Max Switching | Coil Type | Contact Form | Must Operate Voltage | Must Release Voltage | Termination Style | Coil Insulation | Relay Type | Contact Material | Release Time | Coil Voltage | Coil Current | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Operate Time | Switching Voltage [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 60 Ohms | CQC cURus VDE | 16 A | 6400 VA | Non Latching | SPDT (1 Form C) | 3.5 VDC | 0.5 VDC | PC Pin | Class F | General Purpose | Silver Nickel (AgNi) | 6 ms | 5 VDC | 84 mA | 85 °C | -40 C | Through Hole | 8 ms | 400 VAC |
