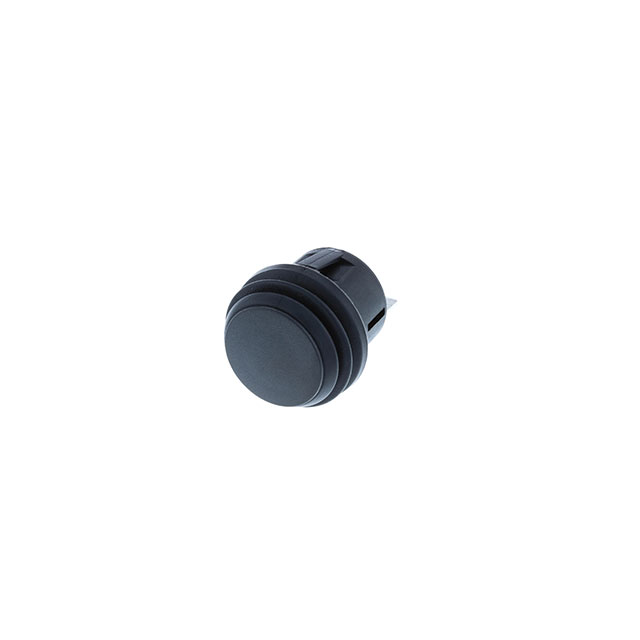

PB-1A-D Series
Manufacturer: Switch Components
Beta
⌘K
3P SPST OFF-ON LED - IP65 DC
| Part | Electrical Life (Cycles) | Mechanical Life (Cycles) | Color - Actuator/Cap | Operating Temperature (Max) | Operating Temperature (Min) | Quick Connect Size (0.187") | Termination Style | Type | Color | Illumination Type | Actuator Type | Circuit | Panel Cutout Diameter | Panel Cutout Shape | Illumination Voltage (Nominal) | Current Rating | Voltage Rating - DC | Switch Function | Ingress Protection IP Rating | Ingress Protection Description | Mounting Type | Actuator Marking | Voltage Rating - AC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Switch Components | 6000 Cycles | 10000 Cycles | Red | 85 °C | -25 °C | 0.187 in | Quick Connect | Illuminated Standard | Red | LED | Button Round | SPST | 20.2 mm | Circular | 12 V | 20 A | 14 V | On-Off | IP65 | Dust Tight Water Resistant | Panel Mount Snap-In | No Marking | |
 Switch Components | 6000 Cycles | 10000 Cycles | Black | 85 °C | -25 °C | 0.187 in | Quick Connect | Standard | Button Round | SPST | 20.2 mm | Circular | 10 A 20 A | 14 V | On-Off | IP65 | Dust Tight Water Resistant | Panel Mount Snap-In | No Marking | 125 V |
