IQE008N Series
Manufacturer: INFINEON
Beta
⌘K

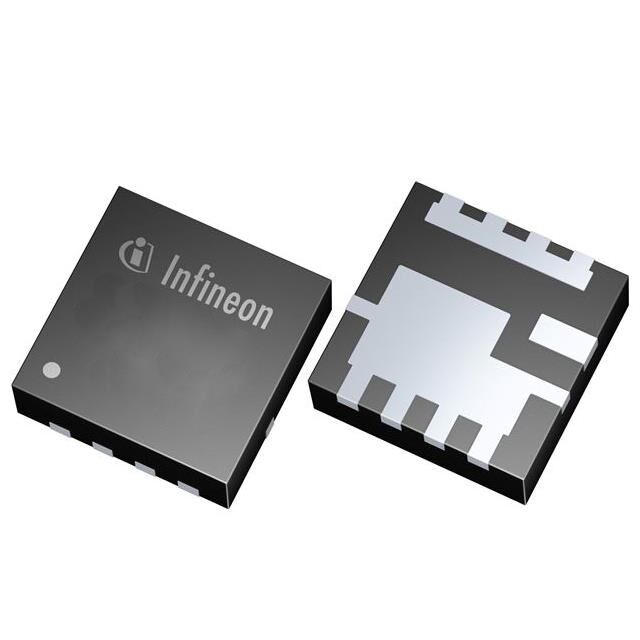

IQE008N03LM5CG OPTIMOS™ LOW-VOLTAGE POWER MOSFET 30 V IN PQFN 3.3X3.3 SOURCE-DOWN PACKAGE
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Gate Charge (Qg) (Max) @ Vgs | Rds On (Max) @ Id, Vgs | Vgs (Max) | Package / Case | Input Capacitance (Ciss) (Max) @ Vds [Max] | Drive Voltage (Max Rds On, Min Rds On) | FET Type | Vgs(th) (Max) @ Id | Power Dissipation (Max) | Supplier Device Package | Technology | Current - Continuous Drain (Id) @ 25°C | Drain to Source Voltage (Vdss) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | 150 °C | -55 °C | Surface Mount | 64 nC | 0.85 mOhm | 16 V | 8-PowerTDFN | 5700 pF | 4.5 V 10 V | N-Channel | 2 V | 2.1 W 89 W | PG-TTFN-9-1 | MOSFET (Metal Oxide) | 27 A 253 A | 30 V |
