M16 Series
Manufacturer: NorComp Inc.
Beta
⌘K

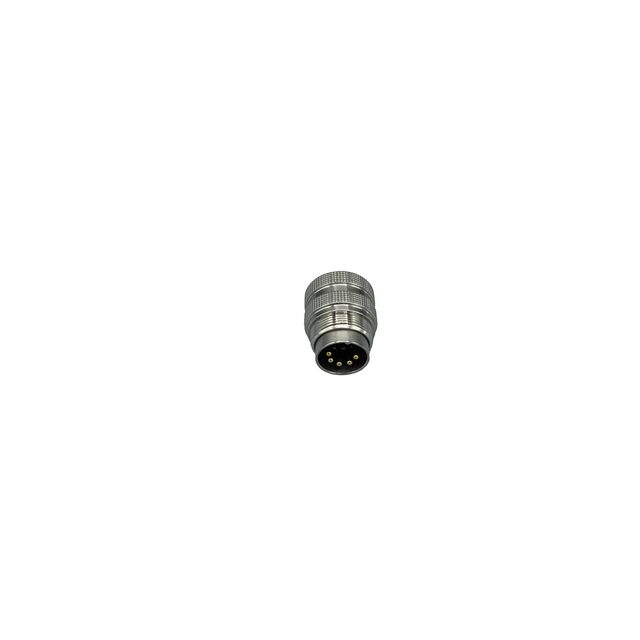

CIRCULAR METRIC CONNECTORS MALE M16 CIRCULAR CONNECTOR CABLE MOUNT A CODE 6 PIN IP67 STRAIGHT SOLDER CUP
| Part | Number of Positions | Current Rating (Amps) | Features | Contact Material | Voltage Rating | Insert Material | Color | Shell Finish | Material Flammability Rating | Ingress Protection | Mounting Type | Shell Material | Fastening Type | Primary Material | Connector Type | Contact Finish Thickness - Mating | Contact Finish - Mating | Shell Size - Insert | Orientation | Operating Temperature [Max] | Operating Temperature [Min] | Shielding | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | 6 | 5 A | Coupling Nut | Brass | 250 V | Nylon 6/6 Polyamide (PA66) | Silver | Nickel | UL94 V-0 | IP67 - Dust Tight Waterproof | Free Hanging (In-Line) | Zinc Alloy | Threaded | Metal | Plug Male Pins | Flash | Gold | M16-6 | Keyed | 85 °C | -40 C | Shielded | |
 NorComp Inc. | 7 A | Brass | 250 V | Nylon 6/6 Polyamide (PA66) | Silver | Nickel | UL94 V-0 | IP67 - Dust Tight Waterproof | Panel Mount | Brass | Threaded | Metal | Receptacle Female Sockets | Flash | Gold | M16-3 | Keyed | 85 °C | -40 C | Shielded | Bulkhead - Front Side Nut | ||
 NorComp Inc. | 4 | 7 A | Brass | 250 V | Nylon 6/6 Polyamide (PA66) | Silver | Nickel | UL94 V-0 | IP67 - Dust Tight Waterproof | Panel Mount | Brass | Threaded | Metal | Receptacle Male Pins | Flash | Gold | M16-4 | Keyed | 85 °C | -40 C | Shielded | Bulkhead - Front Side Nut |
