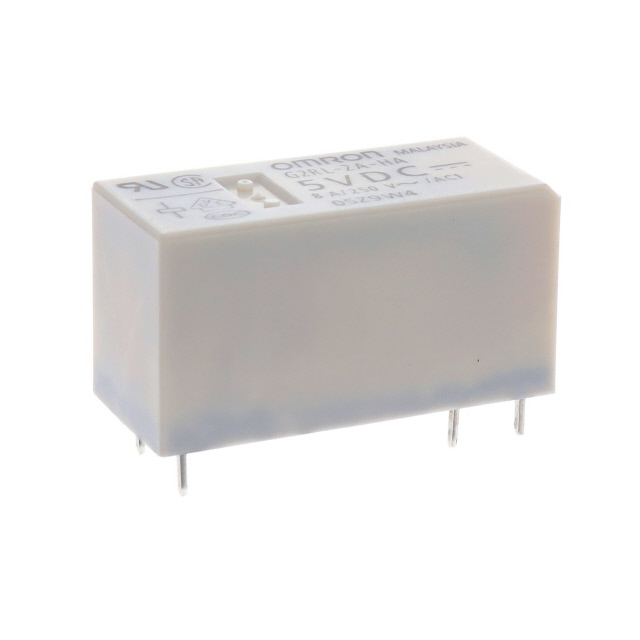

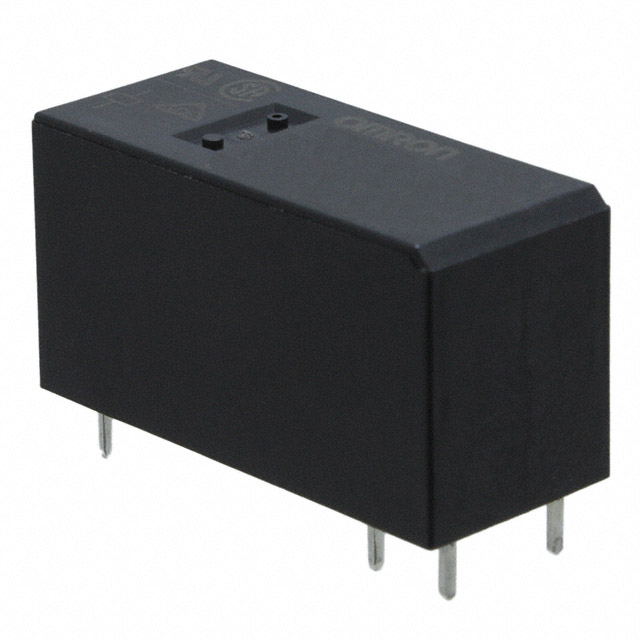

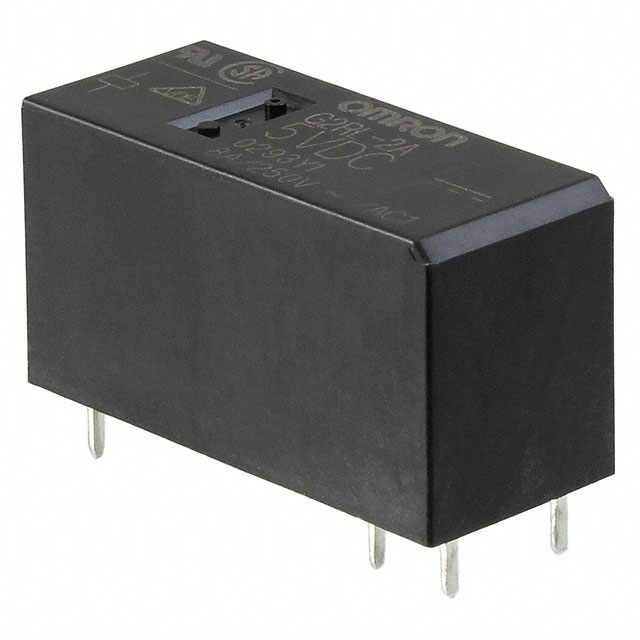

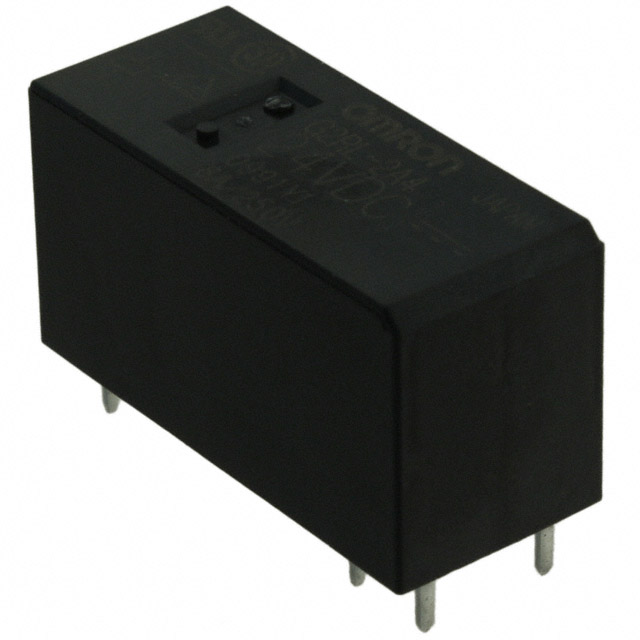

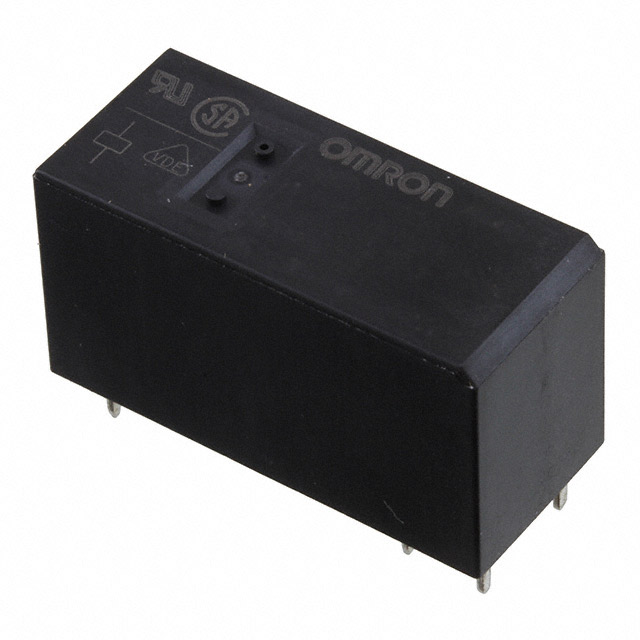

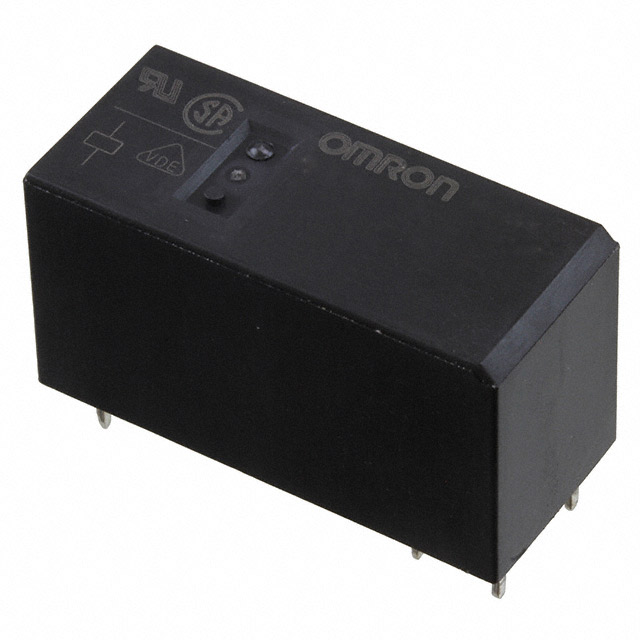

G2RL-2A Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE DPST 8A 12V
| Part | Operate Time | Release Time | Coil Voltage | Coil Resistance | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Mounting Type | Seal Rating | Relay Type | Contact Rating (Current) | Must Operate Voltage | Switching Voltage | Coil Current | Termination Style | Load - Max Switching | Contact Form | Approval Agency | Coil Insulation | Coil Type | Must Release Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 15 ms | 5 ms | 12 VDC | 360 Ohms | 85 °C | -40 °C | Cadmium Free Silver Alloy | Through Hole | Sealed - Flux Protection | General Purpose | 8 A | 8.4 VDC | 300 VDC 440 VAC | 33.3 mA | PC Pin | 2400 W 3520 VA | DPST-NO (2 Form A) | CQC CSA UR VDE | Class F | Non Latching | 1.2 VDC |
 Omron Electronics Inc-EMC Div | 15 ms | 5 ms | 12 VDC | 360 Ohms | 85 °C | -40 °C | Cadmium Free Silver Alloy | Through Hole | Sealed - Flux Protection | General Purpose | 8 A | 8.4 VDC | 300 VDC 440 VAC | 33.3 mA | PC Pin | 2400 W 3520 VA | DPST-NO (2 Form A) | CQC CSA UR VDE | Class F | Non Latching | 1.2 VDC |
Omron Electronics Inc-EMC Div | 15 ms | 5 ms | 48 VDC | 5.36 kOhms | 85 °C | -40 °C | Cadmium Free Silver Alloy | Through Hole | Sealed - Fully | General Purpose | 8 A | 33.6 VDC | 300 VDC 440 VAC | 9 mA | PC Pin | 2400 W 3520 VA | DPST-NO (2 Form A) | CQC CSA UR VDE | Class F | Non Latching | 4.8 VDC |
 Omron Electronics Inc-EMC Div | 15 ms | 5 ms | 5 VDC | 62.5 Ohms | 85 °C | -40 °C | Cadmium Free Silver Alloy | Through Hole | Sealed - Flux Protection | General Purpose | 8 A | 3.5 VDC | 300 VDC 440 VAC | 80 mA | PC Pin | 2400 W 3520 VA | DPST-NO (2 Form A) | CQC CSA UR VDE | Class F | Non Latching | 0.5 VDC |
 Omron Electronics Inc-EMC Div | 15 ms | 5 ms | 24 VDC | 1440 Ohms | 85 °C | -40 °C | Cadmium Free Silver Alloy | Through Hole | Sealed - Flux Protection | General Purpose | 8 A | 16.8 VDC | 300 VDC 440 VAC | 16.7 mA | PC Pin | 2400 W 3520 VA | DPST-NO (2 Form A) | CQC CSA UR VDE | Class F | Non Latching | 2.4 VDC |
 Omron Electronics Inc-EMC Div | 15 ms | 5 ms | 90 Ohms | 85 °C | -40 °C | Cadmium Free Silver Alloy | Through Hole | Sealed - Flux Protection | General Purpose | 8 A | 4.2 VDC | 300 VDC 440 VAC | 66.7 mA | PC Pin | 2400 W 3520 VA | DPST-NO (2 Form A) | CQC CSA UR VDE | Class F | Non Latching | 0.6 VDC | |
Omron Electronics Inc-EMC Div | 15 ms | 5 ms | 5 VDC | 62.5 Ohms | 85 °C | -40 °C | Cadmium Free Silver Alloy | Through Hole | Sealed - Fully | General Purpose | 8 A | 3.5 VDC | 300 VDC 440 VAC | 80 mA | PC Pin | 2400 W 3520 VA | DPST-NO (2 Form A) | CQC CSA UR VDE | Class F | Non Latching | 0.5 VDC |
 Omron Electronics Inc-EMC Div | 15 ms | 5 ms | 24 VDC | 1440 Ohms | 85 °C | -40 °C | Cadmium Free Silver Alloy | Through Hole | Sealed - Fully | General Purpose | 8 A | 16.8 VDC | 300 VDC 440 VAC | 16.7 mA | PC Pin | 2400 W 3520 VA | DPST-NO (2 Form A) | CQC CSA UR VDE | Class F | Non Latching | 2.4 VDC |
Omron Electronics Inc-EMC Div | 15 ms | 5 ms | 48 VDC | 5.36 kOhms | 85 °C | -40 °C | Cadmium Free Silver Alloy | Through Hole | Sealed - Flux Protection | General Purpose | 8 A | 33.6 VDC | 300 VDC 440 VAC | 9 mA | PC Pin | 2400 W 3520 VA | DPST-NO (2 Form A) | CQC CSA UR VDE | Class F | Non Latching | 4.8 VDC |
Omron Electronics Inc-EMC Div | 15 ms | 5 ms | 24 VDC | 1440 Ohms | 85 °C | -40 °C | Cadmium Free Silver Alloy | Through Hole | Sealed - Flux Protection | General Purpose | 8 A | 16.8 VDC | 300 VDC 440 VAC | 16.7 mA | PC Pin | 2400 W 3520 VA | DPST-NO (2 Form A) | CQC CSA UR VDE | Class F | Non Latching | 2.4 VDC |
