LHD-03 Series

Manufacturer: Adam Tech

Catalog

CONN HEADER R/A 3POS 3.96MM

Part	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Shrouding	Insulation Material	Contact Length - Post [x]	Contact Length - Post [x]	Style	Fastening Type	Contact Shape	Insulation Height	Insulation Height	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Current Rating (Amps)	Contact Material	Contact Type	Mounting Type	Insulation Color	Termination	Connector Type	Contact Length - Mating	Contact Length - Mating	Number of Positions Loaded	Insulation Height [z]	Insulation Height [z]	Contact Length - Post	Contact Length - Post	Overall Contact Length	Overall Contact Length	Contact Finish - Post

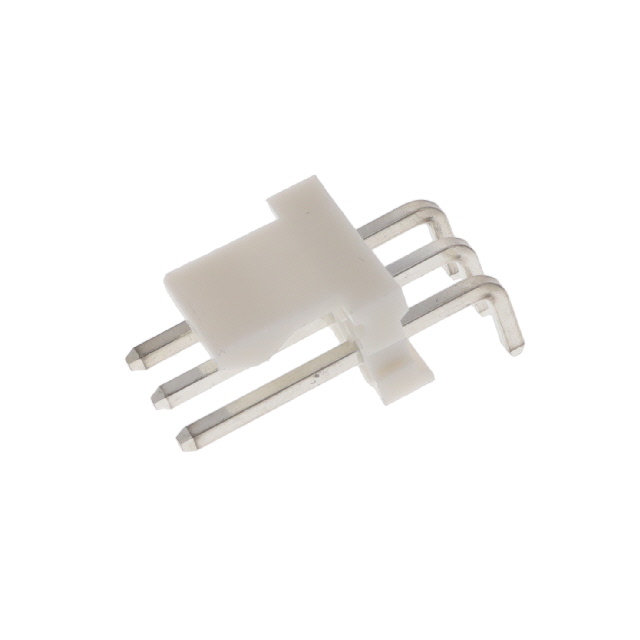

Adam Tech LHD-03-TRA	3.96 mm	0.156 in	UL94 V-2	Shrouded - 1 Wall	Glass Filled Nylon 6/6 Polyamide (PA66)	0.126 "	3.2 mm	Board to Cable/Wire	Friction Lock	Square	7.62 mm	0.3 in	85 °C	-40 C	1	7 A	Brass	Male Pin	Right Angle Through Hole	White	Solder	Header	11.4 mm	0.449 in	All

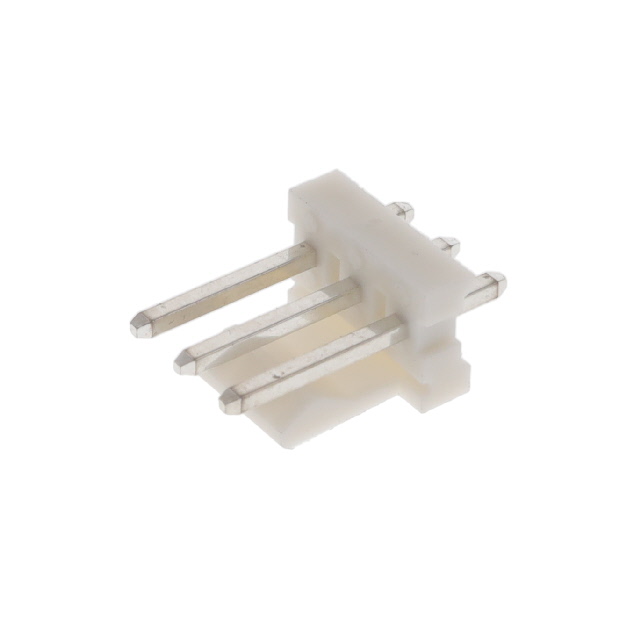

Adam Tech LHD-03-TS	3.96 mm	0.156 in	UL94 V-2	Shrouded - 1 Wall	Nylon 6/6 Polyamide (PA66)			Board to Cable/Wire	Friction Lock	Square			105 ░C	-40 C	1	7 A	Brass	Male Pin	Through Hole	White	Solder	Header	11.38 mm	0.448 in	All	10.8 mm	0.425 in	0.142 in	3.6 mm	18.16 mm	0.715 in	Tin
Adam Tech LHD-03-TRB	3.96 mm	0.156 in	UL94 V-2	Shrouded - 1 Wall	Glass Filled Nylon 6/6 Polyamide (PA66)	0.126 "	3.2 mm	Board to Cable/Wire	Friction Lock	Square	7.62 mm	0.3 in	85 °C	-40 C	1	7 A	Brass	Male Pin	Right Angle Through Hole	White	Solder	Header	11.4 mm	0.449 in	All							Tin
