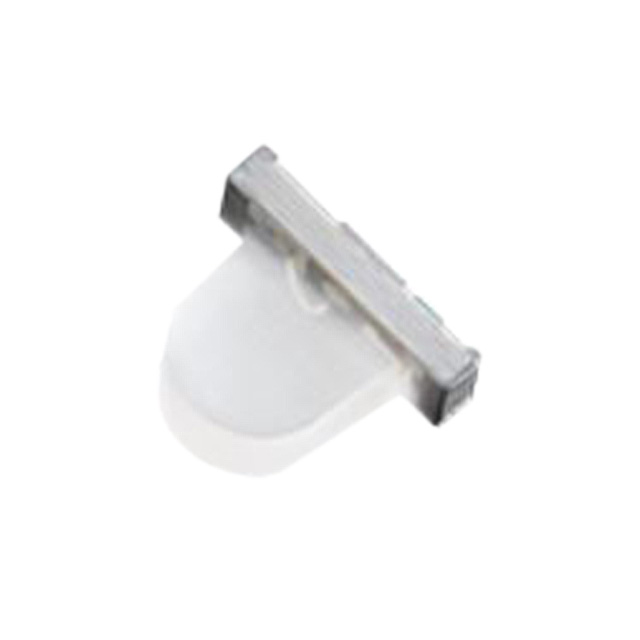

APPA3010 Series

Catalog

LED GREEN CLEAR SMD R/A

Part	Lens Transparency	Wavelength - Dominant	Supplier Device Package	Mounting Type	Height (Max) [z]	Size / Dimension [x]	Size / Dimension [y]	Millicandela Rating	Voltage - Forward (Vf) (Typ)	Configuration	Wavelength - Peak	Lens Color	Viewing Angle	Package / Case	Color	Lens Style	Lens Size [diameter]	Current - Test	Radiant Intensity (Ie) Min @ If [Min]	Orientation [custom]	Type	Operating Temperature [Max]	Operating Temperature [Min]	Current - DC Forward (If) (Max)	Wavelength
Kingbright APPA3010ZGCK	Clear	525 nm	SMD	Right Angle Surface Mount	1.1 mm	3 mm	2.5 mm	700 mcd	3.3 V	Standard	515 nm	Colorless	30 °	2-SMD No Lead	Green	Round with Domed Top	2.01 mm	20 mA
Kingbright APPA3010SURCK	Clear	630 nm	SMD	Right Angle Surface Mount	1.1 mm	3 mm	2.5 mm	300 mcd	1.95 V	Standard	645 nm	Colorless	30 °	2-SMD No Lead	Red	Round with Domed Top	2.01 mm	20 mA
Kingbright APPA3010QBC/D	Clear	465 nm	SMD	Right Angle Surface Mount	1.1 mm	3 mm	2.5 mm	200 mcd	3.3 V	Standard	460 nm	Colorless	30 °	2-SMD No Lead	Blue	Round with Domed Top	2.01 mm	20 mA
Kingbright APPA3010SF4C-P22				Right Angle Surface Mount					1.3 V				30 °	2-SMD No Lead					1 mW/sr	Side View	Infrared (IR)	85 °C	-40 C	50 mA	880 nm
Kingbright APPA3010CGCK	Clear	570 nm	SMD	Right Angle Surface Mount	1.1 mm	3 mm	2.5 mm	150 mcd	2.1 V	Standard		Colorless	30 °	2-SMD No Lead	Green	Round with Domed Top	2.01 mm	20 mA
Kingbright APPA3010SECK	Clear	605 nm	SMD	Right Angle Surface Mount	1.1 mm	3 mm	2.5 mm	380 mcd	2.1 V	Standard	610 nm	Colorless	30 °	2-SMD No Lead		Round with Domed Top	2.01 mm	20 mA
Kingbright APPA3010SYCK	Clear	590 nm	SMD	Right Angle Surface Mount	1.1 mm	3 mm	2.5 mm	450 mcd	2 V	Standard	590 nm	Colorless	30 °	2-SMD No Lead	Yellow	Round with Domed Top	2.01 mm	20 mA
