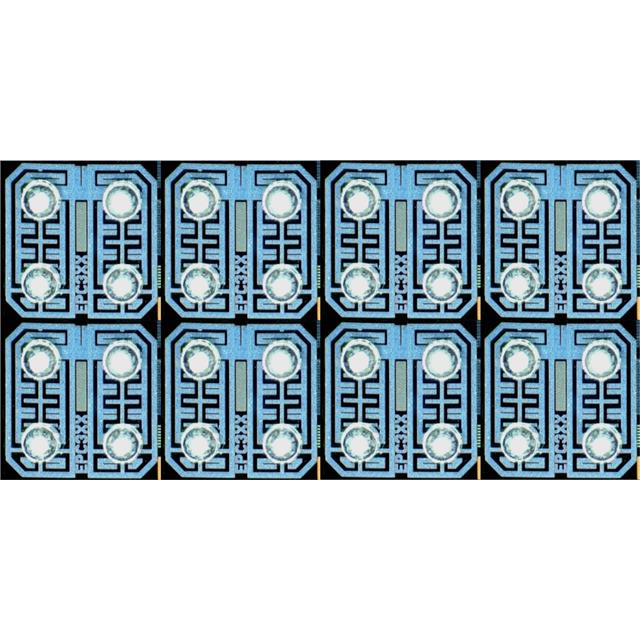

EPC330 Series
Manufacturer: ESPROS Photonics AG
Beta
⌘K
SENSOR PHOTODIODE 850NM 32XFBGA
| Part | Viewing Angle | Current - Dark (Typ) | Response Time | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - DC Reverse (Vr) (Max) [Max] | Color - Enhanced | Wavelength | Package / Case | Mounting Type | Spectral Range [Max] | Spectral Range [Min] | Active Area | Responsivity @ nm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ESPROS Photonics AG | 150 ° | 640 pA | 300 ns | 85 °C | -40 C | 20 V | Infrared (NIR) Red | 850 nm | 32-XFBGA CSPBGA | Surface Mount | 1030 nm | 400 nm | 6.84 mm² | 0.6 A/W |
